22" Swing 120" Centers Birmingham
Location:
Harrison, NJ
Price:
$15,995 USD
Manufacturer:
Birmingham lathes
Model:
YCL-22120
Distance between Centers:
120"
Spindle Nose:
D1-8

Specifications

Condition:
new
Stock number:
139053
Dro:
NEWALL DP-700, ACU-RITE, or UNIQ IMPORT
Note:

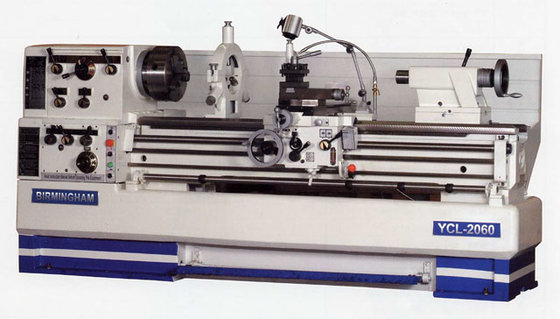

Photo is of the smaller but similar YCL-2060 model
Age info:
NEW
Cross feeds:
35 KINDS, 0.00048" - 0.01354" REV.
Inch threads:
60 KINDS, 112 - 2 TPI
Spindle nose:
D1-8
Width of bed:
13-3/4"
Metric threads:
47 KINDS, 0.2 - 14MM
Module threads:
39 KINDS, 0.1 - 7MM
Max. swing in gap:
31"
Longitudinal feeds:
35 KINDS, 0.0022" - 0.0612" REV.
Max. swing over bed:
22"
Power of main motor:
10 HP, 230/460V/60HZ, 3 PHASE PREWIRED 230V
4-way tool post size:
1" X 1"
Power of coolant pump:
1/8 HP, 230/460V/60HZ, 3 PHASE PREWIRED 230V
Diametral pitch threads:
50 KINDS, 4 - 112 DP
Effective length in gap:
6"
Taper of spindle center:
MT#7 / MT#5
Distance between centers:
120"
Max. travel of top slide:
5-1/8"
Spindle speeds, 12 steps:
25,35,55,80,120,170,235,350,525,700,1100,1600 RPM
Max. travel of cross slide:
12-15/16"
Diameter of tailstock quill:
3"
Max. swing over cross slide:
13-3/4"
Diameter of spindle thru bore:
3-1/8"
Max. effective cutting length:
116"
Max. travel of tailstock quill:
7"
Taper of tailstock quill center:
MT#5
Longitudinal leadscrew dia/pitch:
DIA. 1-5/8" / 4 TPI
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

NEW BIRMINGHAM 22" x 120" PRECISION GAP BED LATHE
MODEL: YCL-22120
Note: Photo is of the smaller but similar YCL-2060 model
FEATURES:
10 HP MAIN MOTOR
ONE PIECE CAST IRON BASE
D1-8 SPINDLE WITH 3-1/8" SPINDLE BORE
NO CHANGE GEARS REQUIRED
12 SPEEDS FROM 45 - 1,600 RPM
60 KINDS OF INCH THREADS FROM 112 - 2 TPI
47 KINDS OF METRIC THREADS FROM 0.2 - 14MM
MAIN SPINDLE HARDENED & PRECISION GROUND
BED MADE OF FINE GRAIN HIGH TENSILE CAST IRON
BEDWAYS INDUCTION HARDENED & PRECISION GROUND
ALL GEARS & SHAFTS HARDENED & PRECISION GROUND
MAIN SPINDLE SUPPORTED AT 3-POINT BY PRECISION BEARINGS
SPECIFICATIONS:
MAX. SWING OVER BED: 22"
DISTANCE BETWEEN CENTERS: 120"
MAX. EFFECTIVE CUTTING LENGTH: 116"
MAX. SWING OVER CROSS SLIDE: 13-3/4"
MAX. SWING IN GAP: 31"
EFFECTIVE LENGTH IN GAP: 6"
WIDTH OF BED: 13-3/4"
SPINDLE NOSE: D1-8
DIAMETER OF SPINDLE THRU BORE: 3-1/8"
TAPER OF SPINDLE CENTER: MT#7 / MT#5
SPINDLE SPEEDS, 12 STEPS: 25,35,55,80,120,170,235,350,525,700,1100,1600 RPM
LONGITUDINAL FEEDS: 35 KINDS, 0.0022" - 0.0612" REV.
CROSS FEEDS: 35 KINDS, 0.00048" - 0.01354" REV.
METRIC THREADS: 47 KINDS, 0.2 - 14MM
INCH THREADS: 60 KINDS, 112 - 2 TPI
MODULE THREADS: 39 KINDS, 0.1 - 7MM
DIAMETRAL PITCH THREADS: 50 KINDS, 4 - 112 DP
MAX. TRAVEL OF CROSS SLIDE: 12-15/16"
MAX. TRAVEL OF TOP SLIDE: 5-1/8"
4-WAY TOOL POST SIZE: 1" X 1"
LONGITUDINAL LEADSCREW DIA/PITCH: DIA. 1-5/8" / 4 TPI
DIAMETER OF TAILSTOCK QUILL: 3"
TAPER OF TAILSTOCK QUILL CENTER: MT#5
MAX. TRAVEL OF TAILSTOCK QUILL: 7"
POWER OF MAIN MOTOR: 10 HP, 230/460V/60HZ, 3 PHASE PREWIRED 230V
POWER OF COOLANT PUMP: 1/8 HP, 230/460V/60HZ, 3 PHASE PREWIRED 230V
STANDARD EQUIPMENT:
3 JAW CHUCK
4 JAW CHUCK
FACE PLATE
STEADY REST w/ROLLER JAWS
FOLLOW REST
REMOVABLE GAP
4-WAY TOOL POST
THREAD CHASING DIAL
(2) DEAD CENTERS
REDUCING SLEEVE
FULL LENGTH SPLASH GUARD
ONE PIECE CAST IRON BASE
FOOT BRAKE
HALOGEN WORK LIGHT
COOLANT SYSTEM
LEVELING PADS
4-POSITION AUTO KICK-OUT LONGITUDINAL CARRIAGE STOP
TOOL BOX
TAPER TURNING ATTACHMENT
OPTIONAL EQUIPMENT (CALL FOR PRICING):
10" LARGE STEADY REST w/ ROLLER JAWS
5C HAND LEVER TYPE COLLET CLOSER
5C COLLET CHUCK (FRONT OPERATE) D1-6 MOUNT
DRO: NEWALL DP-700, ACU-RITE, or UNIQ IMPORT
