Top Seller
54" Table 3HP Spindle Birmingham
Location:
Harrison, NJ
Price:
$5,400 USD
Manufacturer:
Birmingham
Model:
BPS-1054-C Belt Drive Head
Capacity:
800 lbs.
Weight:
3,500 lbs.

Specifications

Condition:
new
Stock number:
139436
Model 2:
BPS-1054-C
Age info:
NEW
H x d x w:
89" X 81" X 72"
Net weight:
3,500 lbs.
Ram travel:
18"
Table size:
10" x 54"
Cross travel:
18"
Quill travel:
5"
Spindle taper:
R8
Quill diameter:
3-3/8"
Vertical travel:
18"
Head tilting f/b:
45 Deg / 45 Deg
Head swivel rh/lh:
90 Deg / 90 Deg
Quill feed speeds:
0.0015", 0.003", 0.006"/Rev.
Ram turret swivel:
360 Degrees
Table t-slot size:
5/8" x 3
Optional equipment:
(Call for pricing)
Spindle speeds type:
Step Pulley
Table load capacity:
800 lbs.
Spindle speeds (rpm):
90-5600 (16 Speeds)
Longitudinal travel hand only:
38"
Longitudinal travel w/ power feed:
34-1/4"
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

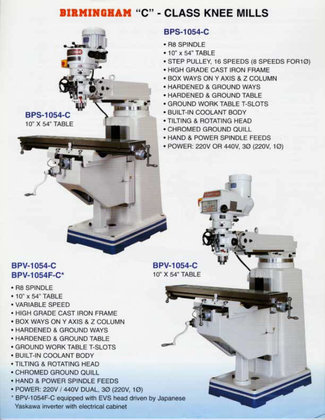

New Birmingham 10" x 54" Vertical Milling Machine
Model: BPS-1054-C
A Superior Taiwan-Made Head w/ the Cost Savings of a Chinese Body
ISO 9002
Safety / Reliability / Performance
BEST BUY - BEST FEATURES
Specifications:
Table Size: 10" x 54"
Table Load Capacity: 800 lbs.
Table T-Slot Size: 5/8" x 3
Longitudinal Travel Hand Only: 38"
Longitudinal Travel w/ Power Feed: 34-1/4"
Cross Travel: 18"
Vertical Travel: 18"
Ram Travel: 18"
Quill Feed Speeds: 0.0015", 0.003", 0.006"/Rev.
Quill Travel: 5"
Spindle Taper: R8
Quill Diameter: 3-3/8"
Head Swivel RH/LH: 90 Deg / 90 Deg
Head Tilting F/B: 45 Deg / 45 Deg
Ram Turret Swivel: 360 Degrees
Spindle Speeds Type: Step Pulley
Spindle Speeds (RPM): 90-5600 (16 Speeds)
Net Weight: 3,500 lbs.
H x D x W: 89" X 81" X 72"
Standard Features:
- High quality Taiwan-made mill head
- High precision China-made mill body
- Super strong column and base
- Low maintenance machines
- High precision leadscrews
- Satin chrome finished dials
- Built-in coolant column base
- Double knee and table locks
- Ram equipped w/ double locks
- Large diameter quill is chromed
- One-piece quill pinion and shaft
- Spindle head is internally cooled
- Hardened & ground ways
- Heavy-duty motor 3 phase or 1 phase
- High precision class 7 spindle bearings
- Three-stage power downfeed w/ auto stop
- One year warranty and 2nd year extended
Standard Equipment:
- Tool box 1 set
- Front Chip Guard 1 pc
- Rear Chip Guard 1 pc
- Draw Bar 1 pc
- One Shot Lube
Optional Equipment: (Call for pricing)
- Coolant System
- Power Feed for X,Y,Z
- Halogen worklight
- Electric control box
- Cutter holder
- Vise
- Clamping kit set
- Digital readout
- Base coolant drop pan
- Power air draw bar unit
- NMTB #30 spindle
