Top Seller
6" Width 18" Length Birmingham
Location:
Harrison, NJ
Price:
$6,000 USD
Model:
WSG-618 Hand Feed
Grinding Length:
18-1/2"
Weight:
1,600 lbs.

Specifications

Condition:
new
Stock number:
139438
Weight:
1,600 lbs.
Model 2:
WSG-618
Age info:
NEW
Table size:
6" x 18"
Coolant pump:
0.05 hp
Spindle motor:
2 hp
Spindle speed:
3,600 RPM
Lubricating pump:
0.02 hp
Max. cross travel:
7"
Grinding wheel size:
8" x 1/2" x 1-1/4"
Max. grinding width:
6-1/2"
Dust collector motor:
1/2 hp
Max. grinding length:
18-1/2"
Max. longitudinal travel:
19"
Peripheral speed of wheel:
110 FT/S
Cross travel per graduation:
0.0008"
Cross travel per revolution:
0.2"
Overall dimension (l x w x h):
55" x 39" x 71"
Vertical travel per graduation:
0.00025"
Vertical travel per revolution:
0.05"
Longitudinal travel per revolution:
4-1/8"

Description

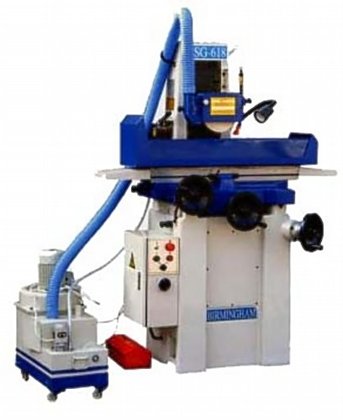

NEW BIRMINGHAM 6" x 18" PRECISION SURFACE GRINDER
MODEL: WSG-618
FEATURES:
- 2 hp wheel spindle motor
- Fine graduation on travels
- High precision cartridge wheel spindle
- High precision and smooth roller way table
- Auto lubrication on leadscrews and ways
- Fine grain high tensile casting construction
SPECIFICATIONS:
Table size: 6" x 18"
Max. grinding length: 18-1/2"
Max. grinding width: 6-1/2"
Max. distance from spindle center to table: 15-3/4"
Max. longitudinal travel: 19"
Max. cross travel: 7"
Longitudinal travel per revolution: 4-1/8"
Cross travel per revolution: 0.2"
Cross travel per graduation: 0.0008"
Vertical travel per revolution: 0.05"
Vertical travel per graduation: 0.00025"
Peripheral speed of wheel: 110 FT/S
Spindle speed: 3,600 RPM
Grinding wheel size: 8" x 1/2" x 1-1/4"
Spindle motor: 2 hp
Dust collector motor: 1/2 hp
Coolant pump: 0.05 hp
Lubricating pump: 0.02 hp
Overall dimension (L x W x H): 55" x 39" x 71"
Weight: 1,600 lbs.
STANDARD EQUIPMENT:
- Grinding wheel
- Grinding wheel flange
- Wheel balance arbor
- Diamond wheel dresser
- Working light system
- Toolbox
- Hoisting set
- Leveling pads
- Coolant/dust system
- Standard permanent magnetic chuck
OPTIONAL EQUIPMENT:
- Fineline Permanent magnetic chuck
- Electro-magnetic chuck with demagnetizing system
