- Harrison, NJ
- $21,000 USD
- Birmingham grinding machines
- WSG-1240AHD 3 Axis Automatic
- 7,720 lbs.
- Stock number:
- 7,720 lbs.
- Model 2:
- - column:
- enlarged, double wall, strongly ribbed column,
- Age info:
- - spindle:
- Enlarged spindle set is supported by 4 pieces of
- Table size:
- 12" x 40"
- - slideways:
- Vertical, cross (double vees) and logitudinal (one vee
- - cross feed:
- ball screw for cross travel, powered by AC motor
- Speed (60hz):
- 1,750 RPM
- - hand wheels:
- zero-setting slip-rings with vernier on vertical
- - construction:
- construction of table, saddle and base is casted
- - vertical feed:
- Powered by servo motor
- Motor of spindle:
- 10 hp
- - hydraulic table:
- table speed ranges 5-25m/min. with rack and
- Auto feed(in/min):
- 0.004" x 0.3"
- (od x w x id) size:
- 13.8" x 1.6" x 5"
- - proximity switch:
- provide built-in-type (hidden) proximity
- Magnetic chuck size:
- 11.8" x 39.4"
- Rapid speed(in/min):
- Auto feed(in/stroke):
- 0.0002" - 0.002"
- - table speed control:
- Presettable hydraulic table speed control
- Rapid speed(in/min) 2:
- Max. longitudinal travel:
- Feed of handwheel(in/div):
- Feed of handwheel(in/div) 2:
- Overall dimension (l x w x h):
- 125" x 88" x 74.4"
- Grinding machines in United States
- New surface grinders
- Subcategory 2:
- Grinders, lappers & hones

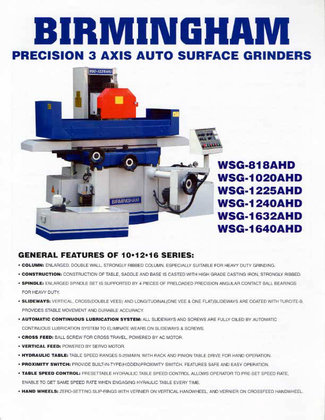

New BIRMINGHAM 12" x 40" PRECISION 3-AXIS AUTOMATIC SURFACE GRINDER
- Column: enlarged, double wall, strongly ribbed column,
especially suitable for heavy duty grinding
- Construction: construction of table, saddle and base is casted
with high grade casting iron, strongly ribbed
- Spindle: Enlarged spindle set is supported by 4 pieces of
preloaded precision angular contact ball bearings for heavy
- Slideways: Vertical, cross (double vees) and logitudinal (one vee
& one flat) slideways are coated with Turcite-B,
provides stable movement and durable accuracy.
- Automatic Continous Lubrication System: All slideways and
screws are fully oiled by automatic continuous lubrication
system to eliminate wears on slideways & screws.
- Cross Feed: ball screw for cross travel, powered by AC motor
- Vertical Feed: Powered by servo motor
- Hydraulic Table: table speed ranges 5-25m/min. with rack and
pinion table drive for hand operation
- Proximity Switch: provide built-in-type (hidden) proximity
switch, features safe and easy operation
- Table Speed Control: Presettable hydraulic table speed control
allows operator to pre-set speed rate, enable to get
same speed rate when engaging hydraulic table every time
- Hand Wheels: zero-setting slip-rings with vernier on vertical
handwheel, and vernier on crossfeed handwheel
Table size: 12" x 40"
Max. longitudinal travel: 44"
Max. distance from spindle center to table: 23"
Magnetic chuck size: 11.8" x 39.4"
Speed of table longitudinal movement (in/min): 280" - 1000"
Table traverse movement -
Auto Feed(in/min): 0.004" x 0.3"
Rapid Speed(in/min): 39"
Feed of Handwheel(in/div): 0.0008"
Wheelhead vertical movement -
Auto Feed(in/stroke): 0.0002" - 0.002"
Rapid Speed(in/min): 18"
Feed of Handwheel(in/div): 0.0002"
Grinding wheel -
Speed (60hz): 1,750 RPM
(OD x W x ID) Size: 13.8" x 1.6" x 5"
Motor of spindle: 10 hp
Max. loading capacity of table (include magnetic chuck): 900 lbs.
Overall dimension (L x W x H): 125" x 88" x 74.4"
Weight: 7,720 lbs.
- Grinding wheel
- Grinding wheel flange
- Wheel balance arbor
- Diamond wheel dresser
- Working light system
- Hoisting set
- Leveling pads
- Coolant/dust collect system
- Standard permanent magnetic chuck
