100 Ton 12" Stroke Pressmaster
Location:
Harrison, NJ
Price:
$32,500 USD
Manufacturer:
Pressmaster
Model:
SP-100
Capacity:
100 TONS
Weight:
12,800 LBS.

Specifications

Condition:
new
Stock number:
140367
Motor:
10 HP
Weight:
12,800 LBS.
Age info:
NEW
Daylight:
27"
Dimensions:
60" X 96" X 106"
Full stroke:
18"
Table depth:
20"
Table width:
96"
- foot pedal:
$3,000
Return speed:
26 IPM
Throat depth:
12"
Advance speed:
20 IPM
Floor to table:
35"
Pressing speed:
20 IPM
Rated capacity:
100 TONS
- speed control:
$ 800
- hand held remote:
$6,000
- single phase motor:
$ 800
- stroke control w/foot pedal:
$3,500
Subcategory 2:
Straightening presses

Description

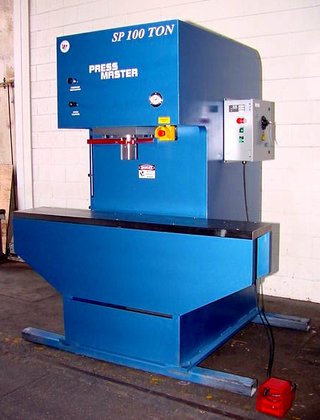

100 TON PRESSMASTER HYD. STRAIGHTENING PRESS
MODEL SP-100T *BRAND-NEW*
RATED CAPACITY .............................. 100 TONS
PRESSING SPEED .............................. 20 IPM
ADVANCE SPEED ............................... 20 IPM
RETURN SPEED ................................ 26 IPM
TABLE WIDTH ................................. 96"
TABLE DEPTH ................................. 20"
FULL STROKE ................................. 18"
THROAT DEPTH ................................ 12"
DAYLIGHT .................................... 27"
FLOOR TO TABLE .............................. 35"
MOTOR ....................................... 10 HP
STANDARD FEATURES:
- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER
IS ENGAGED, THE MORE THE RAM MOVEMENT IS ACCELERATED, THIS ALLOWS THE
OPERATOR TO MATCH THE SPEED TO THE TASK.
- ELECTRIC-HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT
PRESSING ACTION
- FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE
PRESS TO A SPECIFC JOB.
- PRESSURE GAUGE
- PRESSURE REGULATOR, LIMITS RAM PRESSURE
- HIGH CAPACITY 40 GALLON HYDRAULIC OIL RESERVOIR.
- LOW SPEED BALDOR ELECTRIC MOTOR 230/460 3 PHASE
- LOW SPEED PUMP FOR QUIET DEPENDABLE OPERATION
- LOW PRESSURE HYDRAULIC SYSTEM, MAINTAINS LOWER OIL TEMPERATURES
RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION.
- ONE YEAR WARRANTY
- MFG. IN NORTH AMERICA - ALL HYDRAULIC AND MECHANICAL PARTS ARE
STANDARD IN THE INDUSTRY AND AVAILABLE THROUGHOUT NORTH AMERICA.
OPTIONS:
- STROKE CONTROL W/FOOT PEDAL ............. $3,500
- FOOT PEDAL .............................. $3,000
- SINGLE PHASE MOTOR ...................... $ 800
- SPEED CONTROL ........................... $ 800
- HAND HELD REMOTE ........................ $6,000
DIMENSIONS: 60" X 96" X 106"
WEIGHT: 12,800 LBS.
