Top Seller
0.1345" Thickness 100" Width Birmingham
Location:
Harrison, NJ
Price:
$18,480 USD
Model:
VH-810-6 Powered

Specifications

Condition:
new
Stock number:
140374
(note:

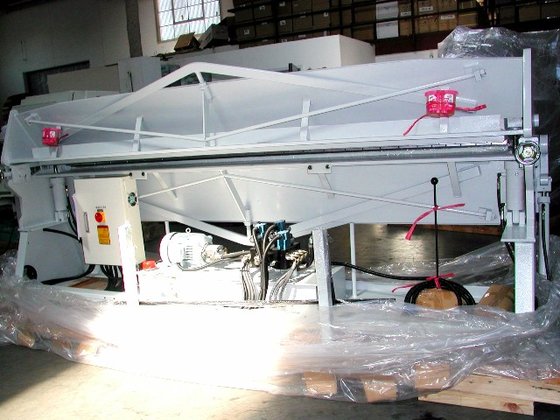

photo is of the 12 Ga x 8' model)
Motor:
5hp
Model 2:
VH-810-6 Made in Taiwan
Age info:
NEW
Mild steel:
10 GA
Net weight:
6,400 lbs.
Packing size:
132" x 46" x 71"H
Bending angle:
0-135 Degrees
Bending length:
96"
Beam adjustment:
1"
Stainless steel:
12 GA
Min reverse bend:
5/8"

Description

New Birmingham Hydraulic 8' x 10 Ga. Box & Pan Brake
Model: VH-810-6 Made in Taiwan
(Note: photo is of the 12 Ga x 8' model)
machine is made to order - Not In Stock
Specifications:
Bending Length: 96"
Mild Steel: 10 GA
Stainless Steel: 12 GA
Bending Angle: 0-135 Degrees
Beam Adjustment: 1"
Min Reverse Bend: 5/8"
Motor: 5hp
Packing Size: 132" x 46" x 71"H
Net Weight: 6,400 lbs.
Standard Finger Assortment, Width & Number of Fingers:
3" - 6
2" - 4
5" - 10
6" - 2
Total - 22
Standard Equipment:
- 24" Manual back gauge with slide and lock for all hydraulic box
and pan brakes
Optional Equipment (call for pricing):
- 32" Single Axis, NC Programmable Power Brake Gauge with
Germany ELGO#P8511
