49" Table 3HP Spindle GMC GMM-949V Variable Speed Head VERTICAL MILL, Made In Taiwan in Harrison, NJ, USA

Top Seller
49" Table 3HP Spindle GMC
Harrison, NJ, USA
$7,350 (USD)
GMM-949V Variable Speed Head


Stock number:
Age info:
Machine Tools equipment in United States

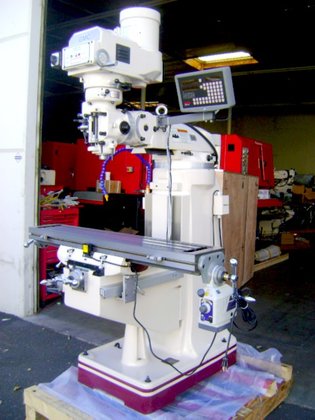

NEW "GMC" 9" x 49" Table w/Variable Speed Head
Knee Type Vertical Milling Machine
Model #GMM-949V Made In Taiwan
Standard Features:
Made in Taiwan - a high quality Mill
"Meehanite" Casting
"Turcite B" Coating on X & Y ways
ISO 9001 certified
Coolant system included
Variable spindle speeds from 70-4,300 rpm
Heavy duty 3 HP AC spindle motor, 3 phase (ideal for tapping jobs,
we strongly recommend the 3 phase mill with a phase converter for
single phase operation )
Hardened & ground dovetail guideways
Hand scraped precision vertical ways
Hardened & ground table and ground table T-slots
Precision hardened & ground ACME Leadscrews
Chromed ground quill ( spindle )
Chromed dials
Adjustable gibs
Hand brake on mill head
Tilting & rotating head
Manual or automatic quill feeds 0.0015, 0.003, 0.006 IPR
One shot lube system
front and rear rubber chip guards
(1) manual draw bar
Tool box with tools
Specify either 220V or 440V, 3 phase
One year industrial warranty for parts
Table Size 9" x 49"
Table Load Capacity 650 LBS
X Axis Travel 35-1/2"
Y Axis Travel 12"
Z Axis Travel 17"
Spindle Taper R-8
AC Spindle Motor 3 HP
Quill ( Spindle ) diameter 3 3/8"
Quill ( Spindle ) travel 5"
Ram travel 12"
Table T-slot size 5/8" x 3 slots
Head Swivel, R/H , L/H 90 degree
Net weight, LBS 2,650 LBS
Standard Equipment:
Coolant system, installed
Way covers
One draw bar
One shot lube system
Tool box with tools
Optional Equipment:
DRO, SINO-2, 2 axis
DRO, NEWALL C80 # NW-949-2, 2 axis
DRO, NEWALL C80,# NW-949-3, 3axis, 3rd on quill or column
DRO, SINO, # SINO-3, 3 axis, 3rd on quill or column
Power air draw bar, High Quality( USA)# HQR8
Base coolant/chip drop pan# COOL-PAN
Power feed # FP-180Y, Taiwan ALIGN, x axis
Power feed # FP-180Y, Taiwan ALIGN, y axis
Power feed # FP-180Z, Taiwan ALIGN, Z axis
Halogen work light
4" raiser # RB4
8" raiser # RB8
6" vise, part# 900-0021
52 pcs clamping kit # # 900-0001, ½"-13NC stud, 5/8" T-slot
11 pcs R8 collets set # 900-0007, 1/8" - 7/8"
Phase converter # PAM-300HD, USA, for single phase operation
Mill package # 3, includes the following:
6" vise #900-0021, collet set #900-0007, Clamping Kit #900-0001,
20pc Titanium end mill set #8000-0020, 29pc Titanium drill bit set #5000-0001T
