Top Seller
54" Table 3HP Spindle GMC
Location:
Harrison, NJ
Price:
$8,650 USD
Manufacturer:
GMC
Model:
GMM-1054VPKG
Capacity:
750 LBS

Specifications

Condition:
new
Stock number:
143786
Age info:
NEW
Table load capacity:
750 LBS
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

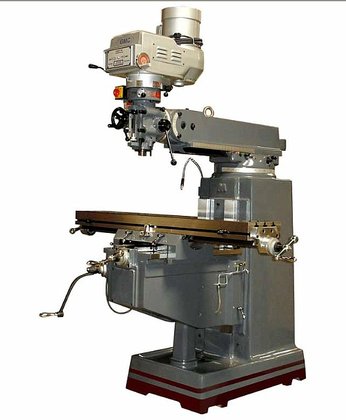

NEW "GMC" 10" x 54" Table, Variable Speed Head
Knee Type Vertical Milling Machine, Made In Taiwan
Model # GMM-1054V-PKG Package Deal
Special Package Deal
** PACKAGE INCLUDES FREE SINO 2 AXIS DRO and X-AXIS POWER FEED, INSTALLED **
Standard Features:
Made in Taiwan - a high quality Mill
"Meehanite" Casting
"Turcite B" Coating on X & Y ways
ISO 9001 certified
Variable spindle speeds from 70-4,300 rpm
Heavy duty 3 HP AC spindle motor, 3 phase (ideal for tapping jobs,
we strongly recommend the 3 phase mill with a phase converter for
single phase operation )
Hardened & ground box ways on Knee and Column
All ways hardened and ground
Hardened & ground table and ground table T-slots
Precision hardened & ground ACME Leadscrews
Chromed ground quill ( spindle )
Chromed dials
Adjustable gibs
Hand brake on mill head
Tilting & rotating head
Manual or automatic quill feeds 0.0015, 0.003, 0.006 IPR
One shot lube system
front and rear rubber chip guards
(1) manual draw bar
Tool box with tools
Specify either 220V or 440V, 3 phase
One year industrial warranty for parts
Specifications:
Table Size 10" x 54"
Table Load Capacity: 750 LBS
X Axis Travel 36-1/2"
Y Axis Travel 16"
Z Axis Travel 16"
Spindle Taper Type R 8
AC Spindle Motor 3 HP
Variable spindle speeds 70-4,300 rpm
Quill ( Spindle ) diameter 3 3/8"
Quill ( Spindle ) travel 5"
Ram travel 18"
SINO DRO and table power feed, installed included
Table T-slot size 5/8" x 3 slots
Head Swivel, R/H , L/H 90 degree
Net weight, LBS 3,250
Standard Equipment:
Way covers
One draw bar
One shot lube system
Tool box with tools
Optional Equipment:
DRO, Upgrade to NEWALL C80 # NW-949-2, 2 axis, free installation
DRO, Upgrade to NEWALL C80,# NW-949-3, 3axis, 3rd on quill or column
DRO, Upgrade to SINO, # SINO-3, 3 axis
Power air draw bar, High Quality( USA)# HQR8
Base coolant/chip drop pan# COOL-PAN
Power feed # FP-180Y, Taiwan ALIGN, y axis
Power feed # FP-180Z, Taiwan ALIGN, Z axis
Halogen work light
4" raiser # RB4
8" raiser # RB8
6" vise, part# 900-0021
52 pcs clamping kit # # 900-0001, ½"-13NC stud, 5/8" T-slot
11 pcs R8 collets set # 900-0007, 1/8" - 7/8"
Phase converter # PAM-300HD, USA, for single phase operation
Mill package # 3, includes the following:
6" vise #900-0021, collet set #900-0007, Clamping Kit #900-0001,
20pc Titanium end mill set #8000-0020, 29pc Titanium drill bit set #5000-0001T
