54" Table 3HP Spindle GMC
Location:
Harrison, NJ
Price:
$9,650 USD
Manufacturer:
GMC
Model:
GMM-1054VT *Taiwan Made*
Capacity:
750 lbs.
Weight:
3,150 lbs.

Specifications

Condition:
new
Stock number:
143787
Model 2:
GMM-1054VT
Age info:
NEW
Net weight:
3,150 lbs.
Ram travel:
20"
Table size:
10" x 54"
Head swivel:
90 degrees
Power source:
220V or 440V, 3 phase
X-axis travel:
36"
Y-axis travel:
15"
Z-axis travel:
17"
Ac spindle motor:
3 HP
Table t-slot size:
5/8" x 3 slots
Spindle taper type:
R8
Table load capacity:
750 lbs.
Variable spindle spds:
70-4,200 rpm
X travel w/power feed:
33"
Quill (spindle) travel:
5"
Quill (spindle) diameter:
3-3/8"
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

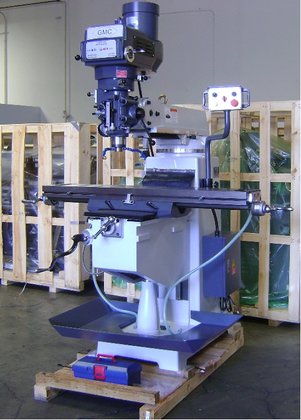

NEW "GMC" MANUAL KNEE TYPE VERTICAL MILL
MODEL: GMM-1054VT
MADE IN TAIWAN
STANDARD FEATURES:
"Meehanite" casting
Turcite "B" coating on X/Y ways like CNC mills
ISO 9001 certified
Mechanical variable spindle speeds from 70-4,200 rpm
Heavy duty 3 HP AC spindle motor, 3 phase
Heavy duty high grade castings
Hardened & ground ways, square ways on knee and column
Hardened & ground table and ground table T-slots
Precision ground ACME leadscrews
Chromed ground quill (spindle)
Chromed dials
Adjustable ways
Hand brake on mill head
Tilting & rotating head
Manual or automatic quill feeds 0.0015", 0.003", 0.006" per spindle revolution
One shot lube system
Front and rear rubber chip guards and (1) manual draw bar
Toolbox and leveling pads
Power source: 220V or 440V, 3 phase
One year industrial warranty for parts
SPECIFICATIONS:
Table size ............................ 10" x 54"
Table load capacity ................... 750 lbs.
X-axis travel ......................... 36"
X travel w/power feed ................. 33"
Y-axis travel ......................... 15"
Z-axis travel ......................... 17"
Spindle taper type .................... R8
AC spindle motor ...................... 3 HP
Variable spindle spds ................. 70-4,200 rpm
Quill (spindle) diameter .............. 3-3/8"
Quill (spindle) travel ................ 5"
Ram travel ............................ 20"
Table T-slot size ..................... 5/8" x 3 slots
Head swivel ........................... 90 degrees
Net weight ............................ 3,150 lbs.
STANDARD EQUIPMENT:
Coolant system with base tray
Halogen work light
Electrical control box
One shot lube
Draw bar
Rubber way covers
Toolbox
OPTIONAL EQUIPMENT (CALL FOR PRICING):
NEWALL DRO, 2 axis, free installation
NEWALL DRO, 3 axis, on quill or column
SINO DRO, 2 axis, free installation
SINO DRO, 3 axis, free installation
Power air draw bar
Power feed, Taiwan ALIGN, x-axis, free install
Power feed, Taiwan ALIGN, y-axis, free install
Power feed, Taiwan ALIGN, z-axis, for knee, free install
6" vise
52 pc clamping kit, 1/2"-13NC stud, 5/8" T-slot
11 pc R8 collet set, 1/8"-7/8"
Phase converter, USA for single phase conversion
Mill package #3, includes: 6" vise, collet set, clamping kit, 20 pc titanium end mill set, 29 pc titanium drill bit set
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
