Top Seller
16Ga Cap. GMC PL-16E *Taiwan
Location:
Harrison, NJ
Price:
$6,850 USD
Manufacturer:
GMC
Model:
PL-16E *Taiwan Made*
Capacity:
16 to 20ga.
Weight:
628 lbs.

Specifications

Condition:
new
Stock number:
143820
Weight:
628 lbs.
Model 2:
PL-16E
Age info:
NEW
Capacity:
16 to 20ga.
Dimensions:
43"L x 27"W x 48"H
Main motor:
5.5 hp, 220v, 3 ph
Feeding speed:
23 FPM
Depth of pocket:
1/2"

Description

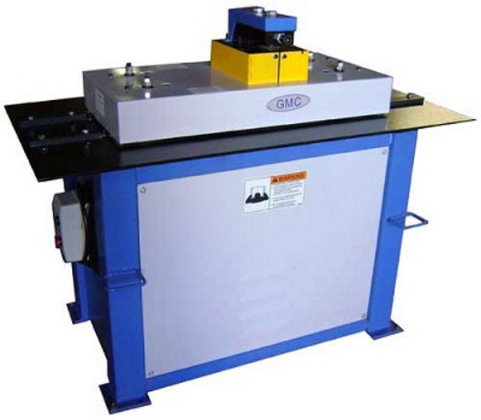

NEW "GMC" PITTSBURG TYPE LOCK FORMING MACHINE
MODEL: PL-16E
Made in Taiwan
STANDARD FEATURES:
ISO 9001 certified
5.5 hp heavy duty AC main motor, 220/440v, 3 phase
Heavy welded all steel construction for maximum rigidity
Standard Pittsburg attachment
Standard power flange attachment, double seam roll, and drive cleat roll
ACME side can be operated at same time
One year warranty for parts
SPECIFICATIONS:
Capacity ........................ 16 to 20ga.
Depth of pocket ................. 1/2"
Feeding speed ................... 23 FPM
Main motor ...................... 5.5 hp, 220v, 3 ph
Weight .......................... 628 lbs.
Dimensions ...................... 43"L x 27"W x 48"H
STANDARD EQUIPMENT:
Pittsburg attachment #PA-16E, installed
Power flange attachment #FA-16E, installed
Drive cleat roll #DCR-16E, installed
Double seam roll #DSR-16E, installed
OPTIONAL ACCESSORIES (CALL FOR PRICING):
Right angle roll #RAR-16E
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
