54" Table 5HP Spindle GMC
Location:
Harrison, NJ
Price:
$9,850 USD
Manufacturer:
GMC
Model:
GMM-5KV - 5HP, #40 Taper

Specifications

Condition:
new
Stock number:
143822
Age info:
NEW
Table size:
10" x 54"
Power downfeed to quill:
0.0015, 0.003, 0.006 IPR
Variable spindle speeds:
70 - 4,300 rpm
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

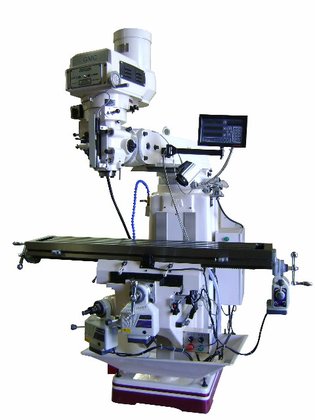

NEW "GMC" 10" x 54" Large Size Manual
Knee Type Vertical Milling Machine
Model # GMM-5KV
Standard Features:
ISO 9001 certified
Meehanite Casting
Turcite B coating on X/Y ways, like a CNC mill
Variable Spindle Speeds: 70 - 4,300 rpm
Heavy duty 5HP AC spindle motor, 3 phase
Hardened & ground guideways
Square ways on Y and Z axis
Hardened & Ground table and Ground table T-slots
Precision Ground ACME Leadscrews
Chromed & Ground Quill ( spindle )
Chromed dials
Adjustable Gibs
Hand brake on mill head
Tilting & rotating head
Power Downfeed to Quill: 0.0015, 0.003, 0.006 IPR
One shot lube system
Front and rear rubber chip guards, and (1) manual draw bar
Tool box
Power source 220V or 208V, 3 phase ( 440 V/ 460 V is optional )
One year warranty for parts
Specifications:
Table Size: 10" x 54"
Table Load Capacity 800 LBS
X Axis Travel 36"
Y Axis Travel 16-1/2"
Z Axis Travel 16-1/2"
Spindle Taper Type NT40
AC Spindle Motor 5 HP
Spindle speeds 70-4,300 rpm Variable speeds
Quill ( Spindle ) diameter 4-1/8"
Quill ( Spindle ) travel 5"
Ram travel 22-1/2"
Table T-slot size 5/8" x 3 slots
Head Swivel, R/H , L/H 90 degree
Net weight, LBS 4,050 LBS
Standard Equipment:
Coolant system with base tray
Halogen work light
"CE" standard electric control box
control panel
One shot lube
Rubber way covers
Tool box
Optional Equipment:
DRO NEWALL # C80, # NW1054-2, 2 axis
DRO NEWALL # C80, # NW1054-3, 3 axis , 3rd on quill or column
DRO, SINO # SINO-2 , 2 axis
DRO, SINO # SINO-3 , 3 axis
Power air draw bar # HQ40, High Quality
Power feed # FP-180X, Taiwan ALIGN, x axis
Power feed # FP-180Y, Taiwan ALIGN, y axis
8" riser block
6" vise# 900-0021
52 pcs clamping kit #900-0001, ½"-13NC stud, 5/8" T-slot
NMTB 40 End Mill Holder set # EMS-NT40, 6 pcs, ½", 5/8", ¾", 7/8", 1" & 1-1/4"
