Top Seller
9.8" Dia. MTI MT-1030-S2 WHEEL
Location:
Harrison, NJ
Manufacturer:
Dresser
Model:
MT-1030-S2

Specifications

Condition:
used
Stock number:
144056
New:
1990's
Age info:
1990's
Category 2:
Grinders, Lappers & Hones
Electrical:
......................... 220 Volts, 3 phase, 50/60Hz
Machine size:
....................... 96" L x 56" W X 55" H, 4000 Lbs.
Table travel:
....................... 20"
Infeed travel:
...................... 6"
Spindle power:
...................... 5 HP
Spindle speeds:
..................... 1700, 2300 RPM @60Hz
Workhead speed:
..................... 0-330 rpm
Auto infeed increment:
.............. .000050"-.0005"
Truing wheel diameter:
.............. 16"
Maximum workpiece length:
........... 20"
Maximum workpiece diameter:
......... 9.8"
Total system current consumption:
... 30 Amps

Description

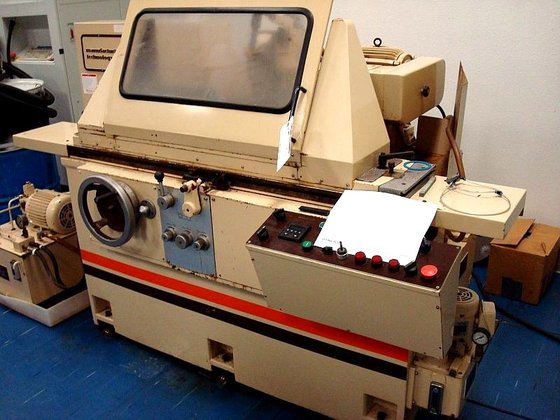

Used Manufacturing Technology Inc. (MTI)
Model MT-1030-S2 Diamond Wheel Truing Machine
New: 1990's
Specifications:
Table Capacities
Maximum Workpiece Diameter:......... 9.8"
Maximum Workpiece Length:........... 20"
Workhead Speed:..................... 0-330 rpm
Table Travel:....................... 20"
Wheel Head
Spindle Power:...................... 5 HP
Spindle Speeds:..................... 1700, 2300 RPM @60Hz
Truing Wheel Diameter:.............. 16"
Infeed Travel:...................... 6"
Auto Infeed Increment:.............. .000050"-.0005"
Electrical:......................... 220 Volts, 3 phase, 50/60Hz
Total System Current Consumption:... 30 Amps
Machine Size:....................... 96" L x 56" W X 55" H, 4000 Lbs.
Equipped with:
Hydraulic Table Traverse
Automatic infeed
Micro Infeed with LED Display on Control Console
Coolant System
Front Enclosure with Window for Coolant
Automatic Lubrication System
Located in Harrison, NJ Warehouse ***
