Top Seller
40" Width Finish Pro FP-4075
Location:
Harrison, NJ
Price:
$17,950 USD
Manufacturer:
Finish Pro
Model:
FP-4075

Specifications

Condition:
new
Stock number:
145242
Age info:
NEW
Dimensions:
76"L x 88"W x 81"H
Main motor:
15 hp, 230/460v, 3 ph
Conveyor motor:
1.5 hp, 230/460v, 3 ph
Max. part width:
40"
Passline height:
31"-37"
Abrasive belt size:
40" x 75"
Net weight, approx:
4,650 lbs.
Contact roller size:
8" dia.
Table lifting motor:
1 hp, 230/460v, 3 ph
Conveyor drive speeds:
8-40 FPM
Infeed conveyor length:
20"
Compressed air required:
2 CFM @ 90 PSI
Dust collector capacity:
1,800 CFM
Max. thickness capacity:
6-1/8"
Subcategory:
Finishing
Subcategory 2:
Sanders, all types

Description

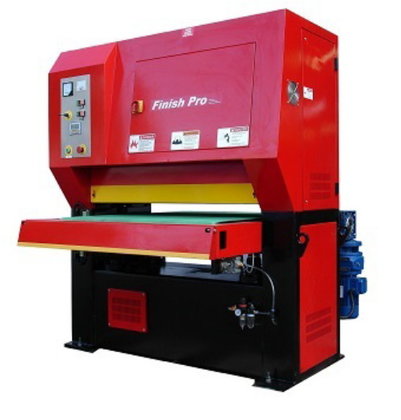

NEW FINISH PRO 40" METAL SANDER
MODEL: FP-4075
STANDARD FEATURES:
Abrasive belt size: 40" x 75"
Motorized Table Lift, with computer display
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to re-adjust the tracking system
when running extremely out of parallel belts
4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the event of
loss of air pressure or activation of any emergency stop device
Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 82 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230, 3-Phase
One year Industrial Warranty for parts
NOTE:
Prices are for 208-230 VOLTS
Total amps 60 @ 230/3/60
COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION:
If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust
collection system that conforms to National Fire Protection Association (NFPA) should be used.
SPECIFICATIONS:
Max. part width ........................ 40"
Abrasive belt size ..................... 40" x 75"
Contact roller size .................... 8" dia.
Passline height ........................ 31"-37"
Max. thickness capacity ................ 6-1/8"
Conveyor drive speeds .................. 8-40 FPM
Infeed conveyor length ................. 20"
Dust collector capacity ................ 1,800 CFM
Main motor ............................. 15 hp, 230/460v, 3 ph
Conveyor motor ......................... 1.5 hp, 230/460v, 3 ph
Table lifting motor .................... 1 hp, 230/460v, 3 ph
Net weight, approx. .................... 4,650 lbs.
Dimensions ............................. 76"L x 88"W x 81"H
OPTIONAL ACCESSORIES (CALL FOR PRICING):
Model WDC-FP40 Wet Dust Collector 1800 CFM, 5HP, 220/440V, 3PH.
WET DUST COLLECTORS use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan.
Particles sink to the base of the tank where they can easily be removed by raking into a provided container.
Normal tap water is used, there are not filter bags to be changed.
Water level is automatically controlled when unit is connected to a water supply.
All units are equipped with explosion relief door and sound silencer.
Heavy Duty Ducting Package #HDDP-4075.
