Top Seller
80" WIDTH 0.25" THICKNESS GMC
Location:
Harrison, NJ
Price:
$19,850 USD
Manufacturer:
GMC bending machines
Model:
HBR-0625 *Taiwan Made*

Specifications

Condition:
new
Stock number:
145255
Model 2:
HBR-0625
Age info:
NEW
Pre-bend:
0.18"
Dimensions:
118"L x 38"W x 58"H
Main motor:
5-1/2 Hp
Mild steel:
6' x 1/4"
Rolls speed:
190"/min.
Rolls length:
6'8"
Rolls opening:
2-1/16"
Machine weight:
7,650 lbs.
Rolls diameter:
7"
Stainless steel:
6' x 3/16"
Oil tank capacity:
25 gal.
Min. roll diameter:
9-7/8"
Power source 208v/220v (option:
460V, 3 phase)
Subcategory:
Bending rolls
Subcategory 2:
New bending rolls

Description

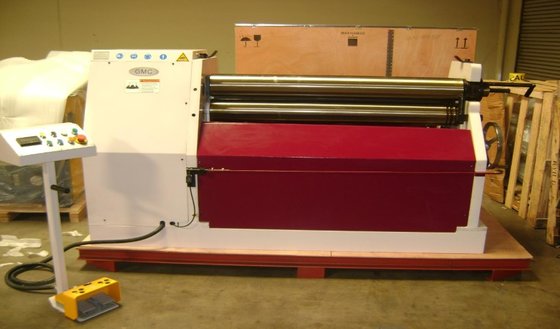

NEW "GMC" HYDRAULIC PLATE BENDING ROLL
MODEL: HBR-0625
Made in Taiwan
STANDARD FEATURES:
ISO 9001 certified
Easy swing-out top roller
Heavy duty all steel welded machine construction
German hydraulic logic system centrally located and quiet
Bending roll is hydraulic powered with up/down & tilting adjustment
Planetary reduction gear and pump
All three rolls are made of high grade alloy steel
All rolls run forward and reverse
Safety type foot pedal control
Overload protection and disconnect switch
Power source 208V/220V (option: 460V, 3 phase)
One year industrial warranty for parts
SPECIFICATIONS:
Roll capacity
Mild steel ..................... 6' x 1/4"
Stainless steel ................ 6' x 3/16"
Min. roll diameter .............. 9-7/8"
Rolls length .................... 6'8"
Rolls diameter .................. 7"
Pre-bend ........................ 0.18"
Rolls speed ..................... 190"/min.
Rolls opening ................... 2-1/16"
Oil tank capacity ............... 25 gal.
Main motor ...................... 5-1/2 Hp
Machine weight .................. 7,650 lbs.
Dimensions ...................... 118"L x 38"W x 58"H
STANDARD EQUIPMENT:
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal
Tool box
OPTIONAL EQUIPMENT (CALL FOR PRICING):
Cone attachment (to make cone parts)
(3) grooves 3/8", 1/2", 5/8" on roll for bending wire
Safety fence for enclosure of the back side of the machine
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
