Top Seller

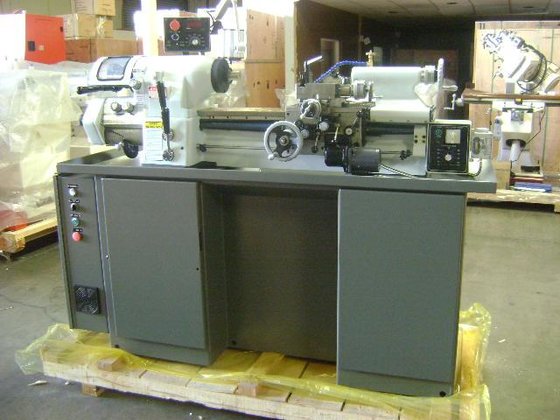

6" Swing 18" Centers GMC
Location:
Harrison, NJ
Price:
$24,950 USD
Manufacturer:
GMC lathes
Model:
TL-618EVS *Taiwan Made*
Distance between Centers:
18"
Spindle Nose:
5C /4 degree taper

Specifications

Condition:
new
Year:
2004
Stock number:
145260
Model 2:
TL-618EVS
Age info:
NEW
Coolant pump:
1/8HP, 220V, 3 phase
Inch threads:
11-118 TPI , 36 kinds
Metric threads:
0.275-2.7mm, 36 kinds
Dc feeding motor:
110V, 70W
With 3-jaw chuck:
6"
With step chucks:
1-1/16" to 6"
Spindle thru hole:
1-1/4"
Cross slide travel:
6"
Machine dimensions:
73"L x 30"W x 67"H
Spindle nose id/od:
5C /4 degree taper
Max. swing over bed:
11"
Swing over carriage:
9"
Compound slide travel:
3"
Spindle nose diameter:
2.189"
Tailstock quill taper:
MT#2
With round 5c collets:
1-1/16"
Machine weight, approx:
2,530 lbs.
Tailstock quill travel:
3-3/4"
With expanding collets:
3"
With square 5c collets:
3/4"
Variable spindle speeds:
0-4,000rpm (5C)/0-3,000 rpm (with 6" 3-jaw chuck)
With hexagon 5c collets:
7/8"
Distance between centers:
18"
Leadscrew diameter/pitch:
1"/ 8TPI
Tailstock quill diameter:
1-3/8"
Max. swing over cross slide:
6"
Cross slide power feed range:
3/16" to 4"/min.
Spindle motor (inverter drive):
3HP, 220V, 3 phase
Carriage power feed speed range:
5/16" to 7"/min
Bar stock diameter with 5c closer:
1-1/16"
Quick change compound slide travel:
0.1"
Subcategory:
Toolroom machines

Description

NEW "GMC" SUPER PRECISION TOOLROOM LATHE
MODEL: TL-618EVS
Made in Taiwan
FEATURES:
ISO 9001 certified
Spindle run-out within 0.00005" (50 millionths inch)
Turcite-B coating on guideways
3HP Yaskawa inverter drive spindle motor
Infinity Yaskawa inverter drive spindle speeds from 0-4,000rpm
Easy to read digital readout on actual spindle rpm speeds
Electric variable automatic feeding control on carriage and cross slide
Quick change tool post slide for threading
Dual range inch/metric quick change gear box
Automatic thread length control w/ fine adjustable stops for accurate threading
36 kinds of inch threads and 36 kinds of metric threads
Spindle is balanced, hardened, and precision ground
High precision pre-loaded angular contact bearings for spindle
Lubrication system for headstock, feed box, ways and leadscrews
Power 220V, 3 phase (220V, 1 phase is optional)
One year industrial warranty for parts
SPECIFICATIONS:
Max. swing over cross slide ............... 6"
Distance between centers .................. 18"
Max. swing over bed ....................... 11"
Swing over carriage ....................... 9"
Spindle capacity
with 3-jaw chuck ......................... 6"
with expanding collets ................... 3"
with round 5C collets .................... 1-1/16"
with hexagon 5C collets .................. 7/8"
with square 5C collets ................... 3/4"
with step chucks ......................... 1-1/16" to 6"
Spindle nose diameter ..................... 2.189"
Spindle nose ID/OD ........................ 5C /4 degree taper
Spindle thru hole ......................... 1-1/4"
Bar stock diameter with 5C closer ......... 1-1/16"
Variable spindle speeds ................... 0-4,000rpm (5C)/0-3,000 rpm (with 6" 3-jaw chuck)
Leadscrew diameter/pitch .................. 1"/ 8TPI
Carriage power feed speed range ........... 5/16" to 7"/min
Cross slide power feed range .............. 3/16" to 4"/min.
Cross slide travel ........................ 6"
Quick change compound slide travel ........ 0.1"
Compound slide travel ..................... 3"
Inch threads .............................. 11-118 TPI , 36 kinds
Metric threads ............................ 0.275-2.7mm, 36 kinds
Tailstock quill diameter .................. 1-3/8"
Tailstock quill taper ..................... MT#2
Tailstock quill travel .................... 3-3/4"
Spindle motor (inverter drive) ............ 3HP, 220V, 3 phase
DC feeding motor .......................... 110V, 70W
Coolant pump .............................. 1/8HP, 220V, 3 phase
Machine weight, approx. ................... 2,530 lbs.
Machine dimensions ........................ 73"L x 30"W x 67"H
STANDARD EQUIPMENT:
5C collet closer installed
Quick change gear box
8" drive plate with drive dog
Dual inch/metric dials
Drive gear
Coolant system
Halogen work light
Tool box with tools
OPTIONAL EQUIPMENT (CALL FOR PRICING):
6" zero-set 3-jaw chuck with taper back plate
6" 4-jaw chuck with taper back plate
Taper turning attachment (installation is optional)
