Top Seller
0.1345" Thickness 72" Width GMC
Location:
Harrison, NJ
Price:
$15,850 USD
Manufacturer:
GMC press brakes
Model:
HBB-0610 *Taiwan Made*

Specifications

Condition:
new
Stock number:
145300
Model 2:
HBB-0610
Age info:
NEW
Oil tank:
15 gal.
Bend angle:
135 degrees
Main motor:
5 Hp
Mild steel:
10 ga.
Machine weight:
5,350 lbs.
Max. box depth:
6"
Stainless steel:
12 ga.
Large beam opening:
3"
Overall dimensions:
110"L x 43"W x 69"H
Max. bending length:
6'

Description

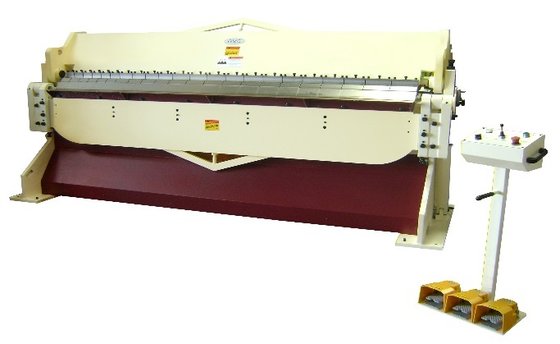

NEW "GMC" HEAVY DUTY
HYDRAULIC BOX & PAN BRAKE
MODEL: HBB-0610
Made in Taiwan
STANDARD FEATURES:
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26" manual back gauge
1" manual beam adjustment (front and back)
Heavy welded all steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total 2"/6"/12"/18"/24" pieces fingers assortment
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
SPECIFICATIONS:
Max. bending length ............... 6'
Capacity
Mild steel ....................... 10 ga.
Stainless steel .................. 12 ga.
Bend angle ........................ 135 degrees
Max. box depth .................... 6"
Large beam opening ................ 3"
Oil tank .......................... 15 gal.
Main motor ........................ 5 Hp
Machine weight .................... 5,350 lbs.
Overall dimensions ................ 110"L x 43"W x 69"H
STANDARD EQUIPMENT:
Assorted fingers
26" manual back gauge
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
OPTIONAL EQUIPMENT (CALL FOR PRICING):
One piece straight finger instead of assorted fingers, extra
Safety fence for enclosure of the front side of the machine
