Top Seller
51" WIDTH 0.1875" THICKNESS GMC
Location:
Harrison, NJ
Price:
$7,850 USD
Manufacturer:
GMC bending machines
Model:
PBR-04316 *Taiwan Made*

Specifications

Condition:
new
Stock number:
145316
Model 2:
PBR-04316
Age info:
NEW
Pre-bend:
0.16"
Main motor:
3 hp
Mild steel:
4'3" x 3/16"
Roll diameter:
4-3/4"
Rolls opening:
1/2"
Approx. weight:
2,750 lbs.
Stainless steel:
4'3" x 11ga.
Dimensions(lxwxh):
78" x 30" x 52"
Rolls speed(ft/min):
20
Minimum bending diameter:
6"
Subcategory:
Bending rolls
Subcategory 2:
New bending rolls

Description

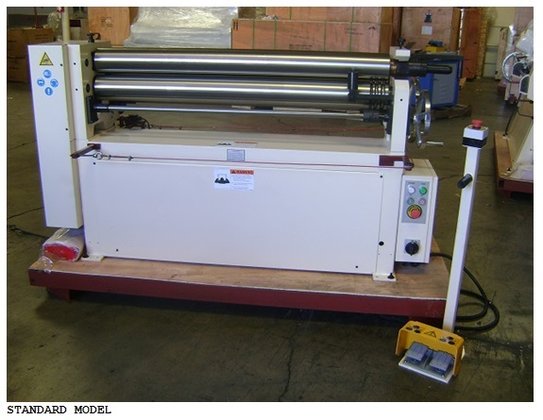

NEW "GMC" HEAVY DUTY BENDING ROLL
MODEL: PBR-04316
MADE IN TAIWAN
STANDARD FEATURES:
ISO 9001 certified
50 HRC hardened rolls for stainless steel
3 rollers are driven to perform high accuracy
3/8", 1/2" and 5/8" grooves on rollers
One wheel one-side operated for bending roll
One wheel one-side operated for pinch roll (optional E-model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
Middle of roller is straight and two ends crown, to get perfect round performance
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220/440V, 3 phase
One year industrial warranty for parts
SPECIFICATIONS:
Capacity
Mild steel ................................. 4'3" x 3/16"
Stainless steel ............................ 4'3" x 11ga.
Roll diameter ............................... 4-3/4"
Minimum bending diameter .................... 6"
Pre-bend .................................... 0.16"
Rolls speed(ft/min).......................... 20
Rolls opening ............................... 1/2"
Main motor .................................. 3 hp
Approx. Weight .............................. 2,750 lbs.
Dimensions(LxWxH) ........................... 78" x 30" x 52"
STANDARD EQUIPMENT:
Adjustable cone attachment
Removable safety foot pedal
Operation & parts manual
E-model comes with motorized bending roll up/down with push button and digital display
OPTIONAL EQUIPMENT (CALL FOR PRICING):
Orange front cover
Safety fence for enclosure of the back side of the machine
E-model: powered bending roll up/down w/ push button & display, 3 hp, 220/440v, 3 phase
