Top Seller
14" Swing 40" Centers GMC
Location:
Harrison, NJ
Price:
$4,650 USD
Manufacturer:
GMC lathes
Model:
GML-1440BGF
Spindle Bore:
1-1/2", D1-4

Specifications

Condition:
new
Stock number:
146516
Age info:
NEW
Main motor:
3 HP, 220V, 1 phase (3 phase optional)
Cross feeds:
0.00046-0.03231 IPR, 24 kinds
Coolant pump:
1/16 HP, 220V, 1 phase
Inch threads:
4-112 TPI, 56 kinds
Spindle bore:
1-1/2", D1-4
Width of bed:
7-1/2"
Metric threads:
0.1-7.0 mm, 44 kinds
Module threads:
0.1-1.75 mm, 34 kinds
Spindle speeds:
70-2,000 rpm/8 steps
Lathe package #1:
5 pc indexable carbide turning set, 1/2" drill chuck,
Max. swing in gap:
19-1/4"
Longitudinal feeds:
0.00168-0.11750 IPR, 24 kinds
Net weight, approx:
1,730 lbs.
Overall dimensions:
70"L x 35"W x 59"H
Max. swing over bed:
14"
Max. length of cutting:
34"
Diametral pitch threads:
16-112 DP, 32 kinds
Spindle speeds, 8 steps:
70/115/190/300/460/755/1255/2000 rpm
Taper of spindle center:
M.T.#5
Max. length of workpiece:
40"
Max. travel of top slide:
4-1/4"
Max. travel of cross slide:
7-1/4"
Diameter of tailstock quill:
1-1/2"
Max. swing over cross slide:
8-1/4"
Max. travel of tailstock quill:
4"
Taper of tailstock quill center:
M.T.#3
Effective length in gap to spindle:
6-1/2"
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

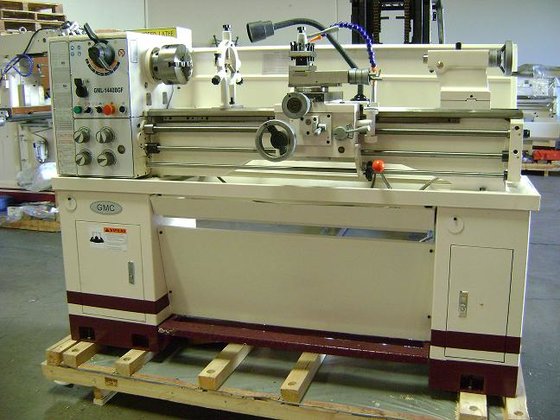

NEW "GMC" HIGH SPEED PRECISION ENGINE LATHE
MODEL: GML-1440BGF
FEATURES:
ISO 9001 certified
Full geared-head precision engine lathe with foot brake
Quick-change gearbox with fast and easy threading set up
Heavy duty main motor 3HP, 220V, 1 phase (3 phase optional)
Spindle bore 1 1/2"
Heavy duty spindle D1-4
Heavy duty guideway width 7 1/2"
8 spindle speeds from 70-2,000 rpm, speeds: 70/115/190/300/460/755/1255/2000 rpm
56 kinds of inch threads and 44 kinds of metric threads
Spindle is balanced, hardened, and precision ground
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year warranty for parts
SPECIFICATIONS:
Max. swing over bed .......................... 14"
Max. length of workpiece ..................... 40"
Max. length of cutting ....................... 34"
Max. swing over cross slide .................. 8-1/4"
Max. swing in gap ............................ 19-1/4"
Width of bed ................................. 7-1/2"
Effective length in gap to spindle ........... 6-1/2"
Effective length in gap to chuck jaws ........ 3-5/8"
Spindle bore ................................. 1-1/2", D1-4
Taper of spindle center ...................... M.T.#5
Spindle speeds ............................... 70-2,000 rpm/8 steps
Longitudinal feeds ........................... 0.00168-0.11750 IPR, 24 kinds
Cross feeds .................................. 0.00046-0.03231 IPR, 24 kinds
Inch threads ................................. 4-112 TPI, 56 kinds
Metric threads ............................... 0.1-7.0 mm, 44 kinds
Diametral pitch threads ...................... 16-112 DP, 32 kinds
Module threads ............................... 0.1-1.75 mm, 34 kinds
Max. travel of top slide ..................... 4-1/4"
Max. travel of cross slide ................... 7-1/4"
Spindle speeds, 8 steps ...................... 70/115/190/300/460/755/1255/2000 rpm
Diameter of tailstock quill .................. 1-1/2"
Max. travel of tailstock quill ............... 4"
Taper of tailstock quill center .............. M.T.#3
Main motor ................................... 3 HP, 220V, 1 phase (3 phase optional)
Coolant pump ................................. 1/16 HP, 220V, 1 phase
Net weight, approx. .......................... 1,730 lbs.
Overall dimensions ........................... 70"L x 35"W x 59"H
STANDARD EQUIPMENT:
6" 3-jaw chuck with set reversible jaws
8" 4-jaw chuck with set reversible jaws
10" face plate
3-3/4" large steady rest
2" follow rest
Removable gap
Foot brake
Coolant system
Halogen work light
4-way tool post
Full length splash guard
(2) dead centers and (1) reducing sleeve
Thread chasing dial
Tool box
OPTIONAL EQUIPMENT (CALL FOR PRICING):
10" drive plate
Micro carriage stop
NEWALL DRO, 2 axis
SINO DRO, 2 axis
5-C hand lever type collet closer, free install
33 pc 5C collet set, from 1/16" to 1-1/16" by 32ndth
Taper turning attachment, free install
6 pc ALORIS type quick chang
