Top Seller
16" Swing 40" Centers GMC
Location:
Harrison, NJ
Price:
$8,950 USD
Manufacturer:
GMC lathes
Model:
GML-1640HD
Spindle Bore:
2-1/16", D1-6

Specifications

Condition:
new
Stock number:
146532
Age info:
NEW
Main motor:
6HP, 220V, 3 phase
Cross feeds:
0.0009-0.03 IPR, 42 kinds
Coolant pump:
1/8HP, 220V, 3 phase
Inch threads:
70-2 TPI, 45 kinds
Spindle bore:
2-1/16", D1-6
Width of bed:
10-1/4"
Metric threads:
0.2-14 mm, 39 kinds
Module threads:
0.3-3.6 mm, 18 kinds
Spindle speeds:
45-1,800 rpm, 16 steps
Max. swing in gap:
23-1/4"
Longitudinal feeds:
0.0018-0.07 IPR, 42 kinds
Net weight, approx:
4,150 lbs.
Overall dimensions:
79"L x 38"W x 56"H
Max. swing over bed:
16-1/16"
Leadscrew length x tpi:
1-1/4" x 4 TPI
Diametral pitch threads:
8-40 DP, 21 kinds
Taper of spindle center:
M.T.#6
Max. length of workpiece:
40"
Max. travel of top slide:
4-1/4"
Max. travel of cross slide:
8-1/2"
Diameter of tailstock quill:
2-1/16"
Max. swing over cross slide:
10-1/4"
Spindle length without chuck:
20-1/2"
Max. travel of tailstock quill:
5"
Taper of tailstock quill center:
M.T.#4
Effective length in gap to spindle:
8-1/2"
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

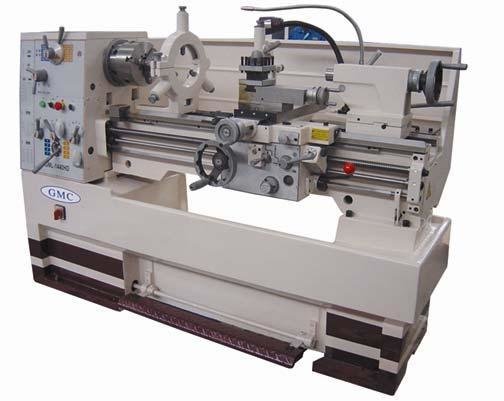

NEW "GMC" HEAVY DUTY PRECISION GAP BED LATHE
MODEL: GML-1640HD
FEATURES:
ISO 9001 certified
Large spindle bore 2-1/16"
Heavy duty spindle D1-6
One-piece solid cast iron machine base
Heavy duty guideway width 10-1/4"
Heavy duty main motor 6 HP
16 spindle speeds from 45-1,800 rpm,
speeds: 45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800 rpm
45 kinds of inch threads and 39 kinds of metric threads
Threading and feeding rate change without changing gears
Spindle is balanced, hardened, and precision ground
Spindle is supported at 3-point by high precision bearings
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box
One year warranty for parts
SPECIFICATIONS:
Max. swing over bed ......................... 16-1/16"
Max. length of workpiece .................... 40"
Max. swing over cross slide ................. 10-1/4"
max. swing in gap ........................... 23-1/4"
Width of bed ................................ 10-1/4"
Effective length in gap to spindle .......... 8-1/2"
Effective length in gap to chuck jaws ....... 3-1/2"
Spindle bore ................................ 2-1/16", D1-6
Taper of spindle center ..................... M.T.#6
Spindle speeds .............................. 45-1,800 rpm, 16 steps
Longitudinal feeds .......................... 0.0018-0.07 IPR, 42 kinds
Cross feeds ................................. 0.0009-0.03 IPR, 42 kinds
Inch threads ................................ 70-2 TPI, 45 kinds
Metric threads .............................. 0.2-14 mm, 39 kinds
Module threads .............................. 0.3-3.6 mm, 18 kinds
Diametral pitch threads ..................... 8-40 DP, 21 kinds
Max. travel of top slide .................... 4-1/4"
Max. travel of cross slide .................. 8-1/2"
Spindle length without chuck ................ 20-1/2"
Leadscrew length x TPI ...................... 1-1/4" x 4 TPI
Diameter of tailstock quill ................. 2-1/16"
Max. travel of tailstock quill .............. 5"
Taper of tailstock quill center ............. M.T.#4
Main motor .................................. 6HP, 220V, 3 phase
Coolant pump ................................ 1/8HP, 220V, 3 phase
Net weight, approx. ......................... 4,150 lbs.
Overall dimensions .......................... 79"L x 38"W x 56"H
STANDARD EQUIPMENT:
SINO DRO, glass scale, resolution 0.0002", free install
8" 3-jaw chuck with set reversible jaws
10" 4-jaw chuck with set reversible jaws
12" face plate
5-1/2" large steady rest with roller jaws
Oil pump on apron for all guideways and leadscrews
2" follow rest
Removable gap
4-way tool post
Foot brake
Halogen work light and coolant system
Full length splash guard
(2) dead centers and (1) reducing sleeve
Thread chasing dial
Tool box and leveling pads
OPTIONAL EQUIPMENT (CALL FOR PRICING):
Micro carriage stop
Gunsmith adaptor
NEWALL DRO, 2 axis, free install
SINO DRO, 2 axis, free install
5-C hand leve
