Top Seller
26" Swing 120" Centers Birmingham
Location:
Harrison, NJ
Price:
$19,650 USD
Manufacturer:
Birmingham lathes
Model:
YCL-26120
Spindle Bore:
4-1/8"
Distance between Centers:
120"

Specifications

Condition:
new
Stock number:
146562
Weight:
4,300 kgs
Age info:
NEW
Dimensions:
4740 x 1230 x 1840
Spindle bore:
4-1/8"
Spindle nose:
D1-8
Width of bed:
16"
Center height:
13"
Length of gap:
10"
Swing over bed:
26"
Leadscrew pitch:
40mm x 2 TPI
Inch threads range:
7/16 ~ 80 TPI
Spindle speed step:
16
Max section of tool:
1" x 1"
Power of main motor:
10 hp
Metric threads range:
0.45 ~ 120mm (54 kinds)
Module pitches range:
0.25 ~ 60MP (46 kinds)
Power of coolant pump:
1/8hp
Swing in gap diameter:
36"
Taper of spindle bore:
MT5
Range of spindle speed:
25-1600 RPM
Swing over cross slide:
17-1/4"
Distance between centers:
120"
Diametrical pitches range:
7/8 ~ 160 DP (42 kinds)
Max travel of cross slide:
14-1/2"
Travel of tailstock sleeve:
9-1/4"
Max travel of compound rest:
9"
Diameter of tailstock sleeve:
3-1/2"
Morse taper of tailstock sleeve:
MT#5
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

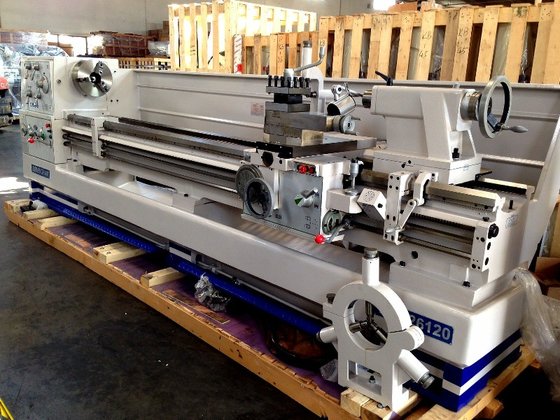

NEW BIRMINGHAM 26" x 120" PRECISION GAP BED LATHE
MODEL: YCL-26120
SPECIFICATIONS:
Swing over bed: 26"
Swing over cross slide: 17-1/4"
Swing in gap diameter: 36"
Length of gap: 10"
Center Height: 13"
Distance between centers: 120"
Width of bed: 16"
Max section of tool: 1" x 1"
Max travel of cross slide: 14-1/2"
Max travel of compound rest: 9"
Spindle bore: 4-1/8"
Spindle nose: D1-8
Taper of spindle bore: MT5
Spindle speed step: 16
Range of spindle speed: 25-1600 RPM
Leadscrew pitch: 40mm x 2 TPI
Inch threads range: 7/16 ~ 80 TPI
Metric threads range: 0.45 ~ 120mm (54 kinds)
Diametrical pitches range: 7/8 ~ 160 DP (42 kinds)
Module pitches range: 0.25 ~ 60MP (46 kinds)
Cross feeds range in metric lead screw: 0.044 ~ 1.48mm/rev (25 kinds)
Cross feeds range in inch lead screw: 0.00165" x 0.05497"/rev (25 kinds)
Longitudinal feeds range in metric lead screw: 0.022 - 0.74mm/rev (25 kinds)
Longitudinal feeds range inch lead screw:0.00083" - 0.02774"/rev (25 kinds)
Travel of tailstock sleeve: 9-1/4"
Diameter of tailstock sleeve: 3-1/2"
Morse taper of tailstock sleeve: MT#5
Power of main motor: 10 hp
Power of coolant pump: 1/8hp
Dimensions: 4740 x 1230 x 1840
Weight: 4,300 kgs
STANDARD FEATURES:
10 HP MAIN MOTOR
ONE-PIECE CAST IRON BASE
NO CHANGE WITH 4" BORE
NO CHANGE GEARS REQUIRED
16 SPDS FROM 25-1600 RPM
54 KINDS OF INCH THREADS
54 KINDS OF METRIC THREADS
MAIN SPINDLE HARDENED & PRECISION GROUND
BED MADE OF FINE GRAIN HIGH TENSILE CAST IRON
BEDWAYS INDUCTION HARDENED & PRECISION GROUND
ALL GEARS & SHAFTS HARDENED & PRECISION GROUND
MAIN SPINDLE SUPPORTED AT 3-POINT BY PRECISION BEARINGS
STANDARD EQUIPMENT:
3 JAW CHUCK
4 JAW CHUCK
FACE PLATE
STEADY REST
FOLLOW REST
THREAD CHASING DIAL
113mm MT5 SLEEVE AND MT5 CENTER
OIL GUN
ONE SET OF WRENCHES
OPERATION MANUAL
DRIVE PLATE
4-WAY TOOL POST
RAPID TRAVEL
SPLASH GUARD
TAPER TURNING ATTACHMENT
OPTIONAL EQUIPMENT (CALL FOR PRICING):
QUICK CHANGE TOOL POST
