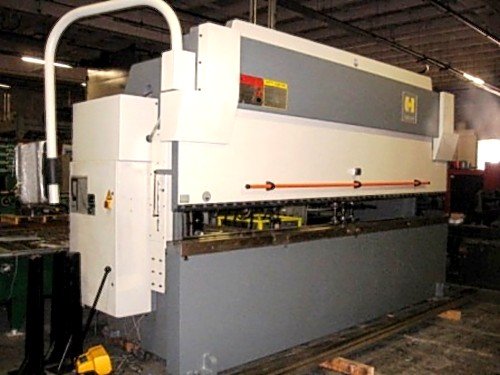

200 Ton 102" Bed Haco
Location:
Harrison, NJ
Price:
$81,900 USD
Manufacturer:
Haco press brakes
Model:
Synchromaster SRM 200-8-6

Specifications

Condition:
new
Stock number:
147350
Model 2:
200-8-6 w/ATS-560 CNC CONTROL
- x-axis:
backgauge with 0.004" positioning accuracy
Age info:
NEW
Dimensions:
105" x 111" x 69" (H x L x W)
Subcategory:
New press brakes

Description

NEW HACO 200 TON x 8'CNC PRESS BRAKE
Model: 200-8-6 w/ATS-560 CNC CONTROL
STANDARD EXECUTION:
- Electronic controlled ram synchro system w/ servo-hydraulic valves.
- Automatic compensation of the side frame deflection by table referenced linear scales, connected w/ the ram SYNCHRO-system
- Pendant control panel with Robosoft ATS 560 CNC control
- X-axis: backgauge with 0.004" positioning accuracy
- Y1/Y2 ram axes positioning, 0.0004" accuracy
- Programmable pressure, ram stroke and ram opening height
- Programmable speed change point
- Automatic full cycle of the ram
- 31" CNC controlled backgauge on high precision ballscrews,including 2 universal fingerblocks, manually adjustable in width and height
- Ram and table machined to use American style tooling.
- Operation, programming and maintenance manual.
- Foot pedal control
d - Full oiltank
SPECIFICATIONS:
Max Capacity 200 Tons
Working Length 102"
Distance between housings 82"
Fast Approach Speed 189 IPM
Max Working Speed 19 IPM
Fast Return Speed 236 IPM
Motor 20 hp
Ram Stroke 7.8"
Gap 11.8"
Daylight Opening 17.7"
Dimensions: 105" x 111" x 69" (H x L x W)
Weight 18,700 lbs.
STANDARD CNC CONTROL MODEL ATS-560:
- 7 Segment LED display (8 digits)
- Capacity of 400 steps, max. 200 programs
- Programmable: top dead center, speed change point, backgauge retracction, material thickness
- Programmable ram depth or pressure programming
- Depth jog mode
- Backgauge jog mode
- Absolute and incremental programming of the backgauge
- Part counter (up & down) in manual and automatic model
- Diagnostics
OPTIONAL SAFETY DEVICES:
(CALL FOR PRICING)
- Central adjustable anti-deflection tables (manual or CNC controlled, only possible w/ ATS600 Control
- Extra fingerblocks
- Pneumatic finger height control
- Front stops
- European and new style manual and hydraulic tool clamping
- Higher level CNC Controls
(Model ATS 570 & ATS 600)
- Safety devices
