Top Seller

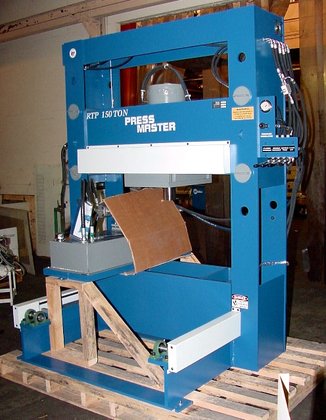

150 Ton 16" Stroke Pressmaster
Location:
Harrison, NJ
Price:
$27,500 USD
Manufacturer:
Pressmaster
Model:
RTP-150 Roll-In Bed
Capacity:
150 TONS
Stroke:
16"

Specifications

Condition:
new
Stock number:
147081
Width:
84"
Height:
105"
Length:
65"
Stroke:
16"
Weight:
4,400#
Age info:
NEW
- v blocks:
$600
Motor specs:
10 HP, 230/460 VOLT, THREE PHASE
Return speed:
28 INCH/MIN
Table travel:
24"
Advance speed:
24 INCH/MIN
Pressing speed:
6 INCH/MIN
Rated capacity:
150 TONS
Cylinder bore size:
10"
Floor to table top:
24-3/4"
Depth between posts:
16-3/4"
- front safety guard:
$1,000
Maximum ram to table:
33-1/4"
Width between uprights:
54"

Description

150 TON PRESSMASTER ROLL-IN TABLE
FULL 4 AXIS POWERED STRAIGHTENING PRESS
RATED CAPACITY .............................. 150 TONS
WIDTH BETWEEN UPRIGHTS ...................... 54"
DEPTH BETWEEN POSTS ........ ................ 16-3/4"
MAXIMUM RAM TO TABLE ........................ 33-1/4"
STROKE ...................................... 16"
TABLE TRAVEL ................................ 24"
FLOOR TO TABLE TOP .......................... 24-3/4"
CYLINDER BORE SIZE .......................... 10"
PRESSING SPEED .............................. 6 INCH/MIN
ADVANCE SPEED ............................... 24 INCH/MIN
RETURN SPEED ................................ 28 INCH/MIN
WEIGHT ...................................... 4,400#
DIMENSIONS
LENGTH ..................................... 65"
WIDTH ...................................... 84"
HEIGHT ..................................... 105"
MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE
(OTHER VOLTAGES AVAILABLE)
STANDARD FEATURES:
POWERED MOVABLE TABLE FOR EASE OF LOADING & POSITIONING WORKPIECE UNDER CYLINDER
POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER
FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER
HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY
CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE
THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR
THE TASK
PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
AVAILABLE OPTIONS:
- V BLOCKS ................ $600
- FRONT SAFETY GUARD ...... $1,000
