Top Seller
54" Table 5HP Spindle Victor
Location:
Harrison, NJ
Price:
$13,200 USD
Model:
JF-5VS Vari-Speed Head
Spindle Taper:
NT# 40

Specifications

Condition:
new
Stock number:
148407
Motor:
5 hp
Model 2:
JF-5VS
T-slots:
5/8" x 3
Age info:
NEW
Table size:
10" x 54"
Spindle rpm:
60 - 3,600
Cross travel:
16"
Quill travel:
6"
Quill diamter:
4.13"
Spindle taper:
NT# 40
Approximate weight:
3,590 lbs.
Packing dimensions:
70 x 62 x 76"H
Longitudinal travel:
40" (36" w/ power feed)
Head inward & outward:
45 degrees
Swiveling angle of head:
90 degrees
Vertical travel of knee:
16"
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

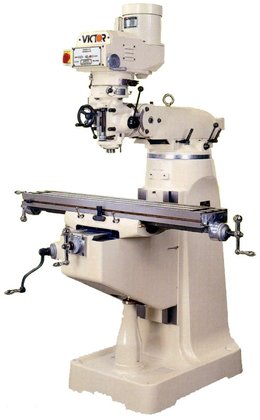

New Victor 10" x 54" High Precision Variable Speed Milling Machine
Model: JF-5VS
Specifications:
Table size: 10" x 54"
T-Slots: 5/8" x 3
Longitudinal Travel: 40" (36" w/ power feed)
Cross Travel: 16"
Vertical Travel of Knee: 16"
Quill Travel: 6"
Quill Feeds:
0.0017"
0.0032"
0.0053"
Quill Diamter: 4.13"
Swiveling Angle of Head: 90 degrees
Head inward & outward: 45 degrees
Spindle RPM: 60 - 3,600
Spindle taper: NT# 40
Motor: 5 hp
Approximate Weight: 3,590 lbs.
Packing Dimensions: 70 x 62 x 76"H
Standard Equipment:
- One-shot lube system
- Meehanite Casting
- Harden & Ground Table
- Class 7 spindle bearings
- Double Saddle Locks
- Precision Hand Scraped
- High Precision Chromed Quill
- Harden, Ground and X, Y Axis Turcite Slideways
Optional Equipment (call for pricing):
-6" Milling Vise
-Clamping kit
-Power Feeds - for Longitudinal, Cross and Knee Available
-Power Draw Bar
-2 and 3 Axis DRO's
-Rotary Table
-Coolant Chip Tray
-Coolant System
-Work light
-Horizontal Mill Attachment
-Riser Block
