Top Seller
49" Table 3HP Spindle Victor
Location:
Harrison, NJ
Price:
$10,100 USD
Model:
JF-2EVS Vari-Speed Head
Spindle Taper:
R-8

Specifications

Condition:
new
Stock number:
148411
Motor:
3 hp, 3ph
Model 2:
JF-2EVS
T-slots:
5/8" x 3
Age info:
NEW
Dimensions:
83"H x 76.15"D x 89"W
Table size:
9" x 49"
Spindle rpm:
60 - 4,200 Inverter Drive Electronic Variable Speed
Cross travel:
12"
Quill travel:
5"
Quill diamter:
3-3/8"
Spindle taper:
R-8
Approximate weight:
2,050 lbs.
Packing dimensions:
55 x 54 x 74"H
Longitudinal travel:
35" (32" w/ power feed)
Head inward & outward:
45 degrees
Swiveling angle of head:
90 degrees
Vertical travel of knee:
16"
Subcategory:
Mills
Subcategory 2:
New vertical mills

Description

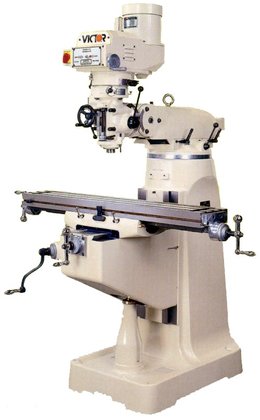

New Victor 9" x 49" High Precision Variable Speed Milling Machine
Model: JF-2EVS
Specifications:
Table size: 9" x 49"
T-Slots: 5/8" x 3
Longitudinal Travel: 35" (32" w/ power feed)
Cross Travel: 12"
Vertical Travel of Knee: 16"
Quill Travel: 5"
Quill Feeds:
0.0017"
0.0032"
0.0053"
Quill Diamter: 3-3/8"
Swiveling Angle of Head: 90 degrees
Head inward & outward: 45 degrees
Spindle RPM: 60 - 4,200 Inverter Drive Electronic Variable Speed
Spindle taper: R-8
Motor: 3 hp, 3ph
(Optional 1ph)
Dimensions: 83"H x 76.15"D x 89"W
Approximate Weight: 2,050 lbs.
Packing Dimensions: 55 x 54 x 74"H
Standard Equipment:
- One-shot lube system
- R-8 Collet Set
- Meehanite Casting
- Harden & Ground Table
- Class 7 spindle bearings
- Double Saddle Locks
- Precision Hand Scraped
- High Precision Chromed Quill
- Harden, Ground and X, Y Axis Turcite Slideways
Optional Equipment (call for pricing):
6" Milling Vise
Clamping kit
Power Feeds - for Longitudinal, Cross and Knee Available
Power Draw Bar
2 and 3 Axis DRO's
10" Rotary Table (v & h)
Coolant Chip Tray
Coolant System
4, 6, or 8" Riser Blocks
Work light
Right Angle Head
Horizontal Mill Attachment
Slotting Head with Flange
Knee Elevation Motor
