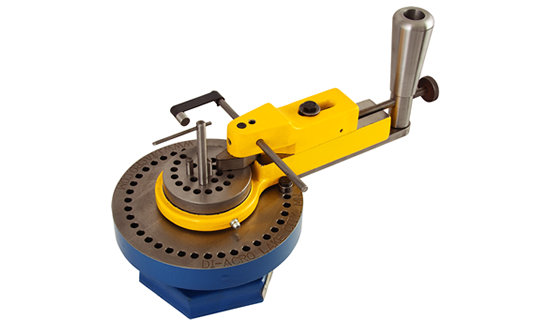

NEW DI-ACRO 1" HAND BENDER
MODEL: #4 MADE IN U.S.A.
The Di-Acro Bender is a multi-purpose machine that quickly adapts to a variety of
bending operations, whether prototype or production. The hand bender is available
in 4 models with capabilities of bending up to 1" round mild steel bar with a
radius of 0 - 12". The Model #4 Bender features a selectable ratchet drive mechanism
for increased power when working with heavier materials.
Max Radius Capacity 12"
Height of std. forming nose 1.5"
Center pin hole diameter 1"
Operating leverage 40"
Round mild steel bar 1"
Square mild steel bar .75"
Steel tubing-16ga 1.25"
Standard Iron Pipe 1 IPS
Flat Steel Bar Easy Way .375 x 4
Flat Steel Bar Hard Way .25 x 1"
Machine Shipping Weight 270 lbs.
Stand Shipping Weight 75 lbs.
Bend locating guage - Allows any number of parts to be identically duplicated.
Angle Stop - precisely determines degree to bend
Locking Pin - securely clamps material to ensure safety and accuracy.
Center Pin - Provides one radius setup plus mount for additional tooling.
Holding Pin - holds material in place to provide accurate bends.
OPTIONAL EQUIPMENT: (call for pricing)
Extension Handles (for models 2 & 3 only)
QuickLok Clamp - invaluable for production; quicly locks material securely in place
and instantly releases for removal.
Stand - Heavy duty with work shelf
Bend-R-Pak 4 - Includes: (call for pricing)
.1875" radius pin
2.75" radius collar
zero radius block
.625" radius pin
Grooved radius collar (for .75" OD tubing to a 2" radius)
Clevis Clamp .75" OD tubing
Follow Block for .75" OD tubing - 9" length
