1.25" Dia Diacro #6 NEW
Location:
Harrison, NJ
Manufacturer:
Diacro
Model:
#6
Weight:
1,150 lbs.

Specifications

Condition:
new
Stock number:
148457
Motor:
3hp
Model 2:
#6 MADE IN THE USA
Age info:
NEW
Machine weight:
1,150 lbs.
Max radius cap:
9"
Wiring (specify):
208, 230, 460v, 3ph, 60hz
Hydraulic pressure:
1,000 psi
Max degree of bend:
280 degrees
Space requirements:
55" x 22" x 40"H
Standard iron pipe:
.75" IPS
Steel tubing - 16ga:
1.25" OD
Round mild steel bar:
.625"
Torque (4" cylinder):
3,500
Flat steel bar (easy way):
.25" x 2"
Flat steel bar (hard way):
.25" x 1"

Description

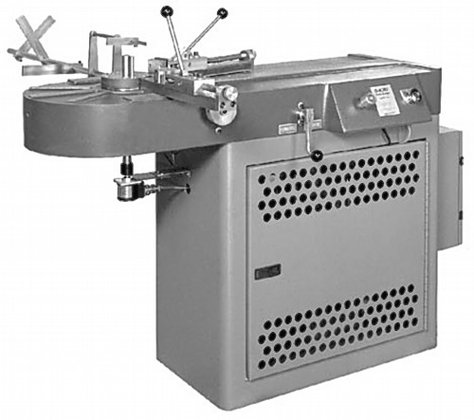

NEW DIACRO 1.25" HYDRAULIC OPERATED POWER BENDER
MODEL: #6 MADE IN THE USA
Description:
The Diacro Power Bender is a hydraulically operated unit that can
be configured for a variety of bending operations.
A wide range of standard tooling options are available for bending
various shapes of tubing, angle, channel as well as flat stock, round
stock and round tubing. Features four adjustable stops to allow bends
with varying degrees to be progressively made. Modernized controls
aid operator safety, improve reliability and provide programmable bends
as a standard feature.
PLC Controlled Bending - improves reliability, repeatability, and
reduces set up time. The new control package includes an ergonomically
positioned two-hand safety switch for added operator safety. An encoder and
adjustable "home" position proximity switch provides manual/auto selection
with a programmable function. Also included is a "real time" bend angle
display and parts counter.
The Di-Acro power bender uses the proven and robust rack and pinion
design to rotate the tooling head. The head is actuated with the larger, now
standard 4" bore cylinder. The self-contained hydrualic power unite with larger
10 gallon reservoir provides additional cooling. A variable volume, pressure-
compensated vain pump provides volume control for bending speed. A double
solenoid directional valve replaces the manual valve for improved reliability and
repeatability.
MODEL 6 SET-UP:
For bending -
tubing,
angle
and
channel
. Includes clamps and pressure roller
assembly as basic tooling for tube bending.
Crush Bend Tooling can be designed for both the #6 & #8 models.
Bending Tooling for Model #6:
Standard grooved radius collar - for bending round tubing. Used with clamp block and follow block.
Crush bend tooling for round and square tubing - it is used primarily for bending
thin wall tubing to a tighter radius. If it is not necessary for the formed section
to retain its original shape, such as in structural components, the tubing can be
purposely distorted with this tooling. The "crush" on the inside radius adds more
strength to the bend, as well as allowing a tight radius with controlled distortion
in the bend area.
Specifications:
Max Radius Cap: 9"
Max degree of bend: 280 degrees
Hydraulic Pressure: 1,000 psi
Motor: 3hp
Wiring (specify): 208, 230, 460v, 3ph, 60hz
Torque (4" cylinder): 3,500 Machine Weight: 1,150 lbs.
Space Requirements: 55" x 22" x 40"H
Material Capabilities:
Round mild steel bar: .625"
Steel Tubing - 16ga: 1.25" OD
Standard Iron Pipe: .75" IPS
Flat Steel Bar (easy way): .25" x 2"
Flat Steel Bar (hard way): .25" x 1"
Standard Equipment:
Angle control with 4 stops
Material length gauge
Electrical Equipment conforms to JIC Electrical Standards for general purpose
machine tools.
Hydraulic cylinder - with 4" bore produces 3,500 ft/lbs for higher capacity
*CALL FOR PRICING OF THE OPTIONAL TOOLING THAT IS AVAILABLE*
