Top Seller
19.7" Swing 1.5HP Spindle Clausing
Location:
Harrison, NJ
Price:
$7,540 USD
Manufacturer:
Clausing presses
Model:
TS25
Capacity:
.71"

Specifications

Condition:
new
Stock number:
148490
Height:
47.6"
Maximum:
19.7"
Minimum:
4.33"
Age info:
NEW
Base height:
3.1"
Spindle taper:
3MT
Quill diameter:
2.44"
Base to spindle:
See Spindle to Table
Column diameter:
3.94"
Main motor power:
1/1.5 HP
Number of speeds:
8
Spindle center to column:
9.84"
Height w/optional cabinet:
79.1" max.
Spindle travel (drilling depth):
4.72"
-maximum tapping capacity in steel:
.71"
-maximum drilling capacity in steel:
1"
Subcategory:
New drill presses

Description

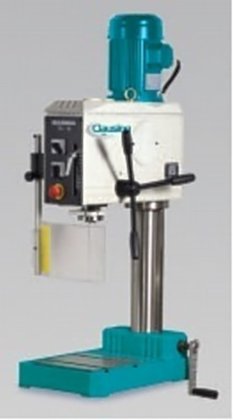

NEW CLAUSING/IBARMIA GEARED-DRIVE ROUND-COLUMN DRILL
19.7" GEARED-HEAD, MANUAL FEED, BENCH
MODEL: TS25
SPECIFICATIONS:
Spindle taper: 3MT
Quill diameter: 2.44"
Spindle travel (drilling depth): 4.72"
Main motor power: 1/1.5 HP
Number of speeds: 8
STANDARD FEATURES & EQUIPMENT:
-Maximum drilling capacity in steel: 1"
-Maximum drilling capacity in cast iron: 1.18"
-Maximum tapping capacity in steel: .71"
-Maximum tapping capacity in cast iron: .87"
-Depth scale and adjustable depth stop
-Thermomagnetic switch
-Spindle reversing switch
-Automatic tool ejector
-Emergency STOP
-High/low speed range selector
-Drill guard with microswitch
DIMENSIONS:
Height: 47.6"
Height w/optional cabinet: 79.1" max.
Base: length x width: 22" x 15"
Base to spindle: See Spindle to Table
Spindle center to column: 9.84"
Spindle to Table:
Minimum: 4.33"
Maximum: 19.7"
Worktable: length x width: N/A
Base height: 3.1"
Column diameter: 3.94"
OPTIONAL EQUIPMENT
(CALL FOR PRICING):
-Separate Tank Coolant System
-Work Light--Magnetic Base
-Cross Table 8.6" x 5.5"
-Cycle Start Foot Pedal
-Foot Pedal For Reversing
-Floor Cabinet w/Shelves*
-Floor Cabinet w/Drawer*
*Factory Installed
WARRANTY:
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
