Top Seller
23.6" Swing 2HP Spindle Clausing
Location:
Harrison, NJ
Price:
$13,695 USD
Manufacturer:
Clausing presses
Model:
SX34RS
Capacity:
1.06"

Specifications

Condition:
new
Stock number:
148509
Height:
86.4"
Maximum:
28.5"
Minimum:
1.97"
Age info:
NEW
Base height:
4.72"
Spindle taper:
4MT
Quill diameter:
2.95"
Auto feed range:
in/rev. .0039/.0079/.0118
Base to spindle:
48.4"
Column diameter:
4.92"
Main motor power:
2 HP
Number of speeds:
9
Coolant pump motor power:
.1 HP
Spindle center to column:
11.81"
Number of automatic feeds:
3
Spindle travel (drilling depth):
5.9"
-maximum tapping capacity in steel:
1.06"
-maximum drilling capacity in steel:
1.34"
Subcategory:
New drill presses

Description

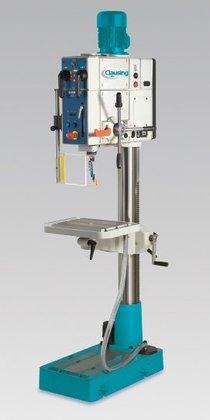

NEW CLAUSING/IBARMIA GEARED-DRIVE ROUND-COLUMN DRILL
23.6" GEARED-HEAD, MANUAL FEED, FLOOR
w/AUTOMATIC FEED REVERSING SYSTEM FOR TAPPING
MODEL: SX34RS
SPECIFICATIONS:
Spindle taper: 4MT
Quill diameter: 2.95"
Spindle travel (drilling depth): 5.9"
Main motor power: 2 HP
Coolant pump motor power: .1 HP
Number of speeds: 9
Number of automatic feeds: 3
Auto feed range: in/rev. .0039/.0079/.0118
STANDARD FEATURES & EQUIPMENT:
-Maximum drilling capacity in steel: 1.34"
-Maximum drilling capacity in cast iron: 1.57"
-Maximum tapping capacity in steel: 1.06"
-Maximum tapping capacity in cast iron: 1.30"
-Automatic feed reversing system for tapping
-Hardened and ground high quality steel gears
-Speed plate and selecting levers on front of head
-Gear box lubrication by automatic pump
-Machine base with 2 T-slots, coolant tank and pump
-Large worktable with 3 T-slots
-Feed crank wheel for manual feed
-Depth scale and adjustable depth stop
-Automatic tool ejector
-Work light
-Built-in low voltage electrical equipment in machine head
-Emergency STOP
-Drill guard with microswitch
DIMENSIONS:
Height: 86.4"
Base: length x width: 29.1" x 16.2"
Base to spindle: 48.4"
Spindle center to column: 11.81"
Spindle to Table:
Minimum: 1.97"
Maximum: 28.5"
Worktable: length x width: 15.75" x 18.9"
Base height: 4.72"
Column diameter: 4.92"
OPTIONAL EQUIPMENT
(CALL FOR PRICING):
-Separate Tank Coolant System
-Work Light--Magnetic Base
-Cross Table 11" x 7"
-Cross Table 15" x 8.7"
-Cross Table 19.6" x 9.8"
-Cycle Start Foot Pedal
-Foot Pedal For Reversing
-Master Guide Spindle & Nuts*
-Rotating & Tilting Table*
-Pitch Control w/Pneumatic Rapid Approach 3.9 in/min.*
-Pitch Control Tapping w/Braking System*
-Union for Multi-Spindle Head*
-Reversing Rotating Tiltable Table*
-Pneumatic Counter Balance*
-7.8" Column Riser*
-Motor, 1200 RPM*
-Motor, 3600 RPM*
-Motor, 900/1800 RPM*
-Motor, 1800/3600 RPM*
*Factory Installed
WARRANTY:
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
