Top Seller
31.5" Swing 7.5HP Spindle Clausing
Location:
Harrison, NJ
Price:
$34,075 USD
Manufacturer:
Clausing presses
Model:
B70RS
Capacity:
2"

Specifications

Condition:
new
Stock number:
148528
Height:
103.9"
Maximum:
25.98"
Minimum:
3.15"
Age info:
NEW
Base height:
6.3"
Spindle taper:
5MT
Quill diameter:
3.54"
Auto feed range:
in/rev. .0039/.0079/.0118/.0157/.0197/.0236
Base to spindle:
49.21"
Column diameter:
8.66"
Main motor power:
7.5 HP
Number of speeds:
12
Coolant pump motor power:
.12 HP
Spindle center to column:
15.75"
Number of automatic feeds:
6
Spindle travel (drilling depth):
10.24"
-maximum tapping capacity in steel:
2"
-maximum drilling capacity in steel:
2.75"
Subcategory:
New drill presses

Description

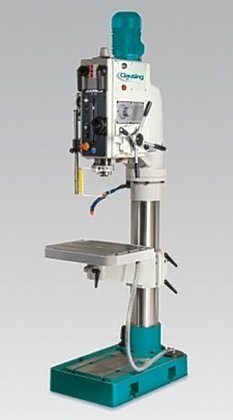

NEW CLAUSING/IBARMIA GEARED-DRIVE ROUND-COLUMN DRILL
31.5" GEARED-HEAD, ELECTRICAL CLUTCH, FLOOR
w/AUTOMATIC FEED REVERSING SYSTEM FOR TAPPING
MODEL: B70RS
SPECIFICATIONS:
Spindle taper: 5MT
Quill diameter: 3.54"
Spindle travel (drilling depth): 10.24"
Main motor power: 7.5 HP
Coolant pump motor power: .12 HP
Number of speeds: 12
Number of automatic feeds: 6
Auto feed range: in/rev. .0039/.0079/.0118/.0157/.0197/.0236
STANDARD FEATURES & EQUIPMENT:
-Maximum drilling capacity in steel: 2.75"
-Maximum drilling capacity in cast iron: 3.15"
-Maximum tapping capacity in steel: 2"
-Maximum tapping capacity in cast iron: 2.36"
-Automatic feed reversing system for tapping
-Automatic feed and cut-off by electromagnetic clutch
-Hardened and ground high quality steel gears
-Speed plate and selecting levers on front of head
-Gear box lubrication by automatic pump
-Machine base with 2 T-slots, coolant tank and pump
-Large worktable with 3 T-slots
-Feed crank wheel for manual feed
-Front hand wheel for fine feed work
-Depth scale and adjustable depth stop
-Automatic tool ejector
-Work light
-Built-in low voltage electrical equipment in machine head
-Emergency STOP
-Drill guard with microswitch
DIMENSIONS:
Height: 103.9"
Base: length x width: 35.8" x 23.2"
Base to spindle: 49.21"
Spindle center to column: 15.75"
Spindle to Table:
Minimum: 3.15"
Maximum: 25.98"
Worktable: length x width: 23.6" x 27.6"
Base height: 6.3"
Column diameter: 8.66"
OPTIONAL EQUIPMENT
(CALL FOR PRICING):
-Separate Tank Coolant System
-Work Light--Magnetic Base
-Cross Table 19.6" x 9.8"
-Cross Table 27.5" x 9.8"
-Cycle Start Foot Pedal
-Foot Pedal For Reversing
-Pitch Control Tapping w/Braking System*
-Master Guide Spindle w/Nuts*
-Master Guide Spindle w/Nuts Special Thread (inch etc.)*
-Pneumatic Counter Balance w/Rapid Approach & Retract*
-50% Lower Feed Range*
-Mechanical Spot Face Device*
-Pneumatic Counter Balance*
-Union for Multi-Spindle Head*
-Multi-Spindle Head Guide Rod*
-Column Riser (8")*
-Motor, 1200 RPM*
-Motor, 3600 RPM*
-Motor, 900/1800 RPM*
-Motor, 1800/3600 RPM*
*Factory Installed
WARRANTY:
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
