- Harrison, NJ
- $58,455 USD
- Clausing presses
- Stock number:
- Age info:
- Base length:
- Table height:
- Overall width:
- Spindle taper:
- Quill diameter:
- Auto feed range:
- in/rev. .0039/.0079/.0118/.0157/.0197/.0236
- Worktable width:
- Main motor power:
- 10 HP
- Number of speeds:
- Worktable length:
- Maximum head height:
- Head geared-motor power:
- 1.5 HP
- Coolant pump motor power:
- .12 HP
- Spindle center to column:
- Number of automatic feeds:
- Spindle travel (drilling depth):
- -maximum tapping capacity in steel:
- -maximum drilling capacity in steel:
- Presses in United States
- New drill presses
- Subcategory 2:
- Drills, tappers & jig borers

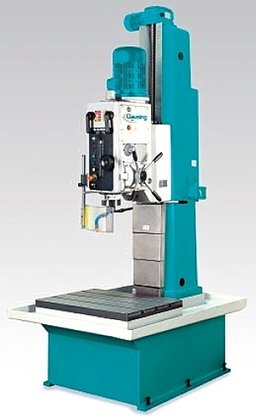

NEW CLAUSING/IBARMIA PRISMATIC COLUMN DRILL
41.3" GEARED-HEAD, ELECTRICAL CLUTCH
w/AUTOMATIC FEED REVERSING SYSTEM FOR TAPPING
Spindle taper: 5MT
Quill diameter: 3.54"
Spindle travel (drilling depth): 10.24"
Main motor power: 10 HP
Coolant pump motor power: .12 HP
Head geared-motor power: 1.5 HP
Number of speeds: 12
Number of automatic feeds: 6
Auto feed range: in/rev. .0039/.0079/.0118/.0157/.0197/.0236
STANDARD FEATURES & EQUIPMENT:
-Maximum drilling capacity in steel: 2.76"
-Maximum drilling capacity in cast iron: 3.14"
-Maximum tapping capacity in steel: 2.51"
-Maximum tapping capacity in cast iron: 2.68"
-Automatic feed reversing system for tapping
-Adjustable vertical position of head by geared-motor
-Large worktable with 3 T-slots
-Hardened and ground high quality steel gears
-Gear box lubrication by automatic pump
-Guide ways lubricated by manual pump
-Speed plate and selecting levers on front of head
-Coolant tank and pump in machine base
-Automatic feed and cut-off by electromagnetic clutch
-Front hand wheel for fine feed work
-Depth scale and adjustable depth stop
-Built-in low voltage electrical equipment in column rear
-Automatic tool ejector
-Forward and reverse turn push buttons
-Drill guard with microswitch
Base length: 62.6"
Spindle to Table:
Spindle center to column: 20.67"
Maximum head height: 120.1"
Worktable width: 27.56"
Table height: 27.56"
Worktable length: 35.43"
Overall width: 47.24"
(CALL FOR PRICING):
-Separate Tank Coolant System
-Work Light--Magnetic Base
-Cross Table 27.5" x 14"
-Cycle Start Foot Pedal
-Foot Pedal For Reversing
-Pitch Control Tapping w/Braking System*
-Master Guide Spindle w/Nut Set*
-Master Guide Spindle w/Nut Set & Special Thread (inches etc.)*
-Pneumatic Counter Balance w/Rapid Approach & Retract*
-Pneumatic Counter Balance w/Rapid Approach & Retract (2 cylinders)*
-Pneumatic Counter Balance
-Union for Multi-Spindle Head*
-Multi-Spindle Guide Rod*
-Multi-Spindle Guide Rod (with 2 axis)*
-Coolant Hose for Multi-Spindle Head*
-ISO 50 Spindle w/Quick Change Nut*
-Motor, 1200 RPM*
-Motor, 3600 RPM*
-Motor, 900/1800 RPM*
-Motor, 1800/3600 RPM*
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
