Top Seller
1.5" Dia Diacro 8 NEW
Location:
Harrison, NJ
Price:
$28,025 USD
Manufacturer:
Diacro
Model:
8
Weight:
1,150 lbs.

Specifications

Condition:
new
Stock number:
148568
Motor:
3hp
Model 2:
#8 MADE IN THE USA
Age info:
NEW
Machine weight:
1,150 lbs.
Max radius cap:
24"
Wiring (specify):
208, 230, 460v, 3ph, 60hz
Hydraulic pressure:
1,200 psi
Max degree of bend:
360 degrees
Space requirements:
55" x 22" x 40"H
Standard iron pipe:
.1" IPS
Steel tubing - 16ga:
1.5" OD
Round mild steel bar:
1"
Torque (4" cylinder):
3,500
Flat steel bar (easy way):
.375" x 4"
Flat steel bar (hard way):
.375" x 1"

Description

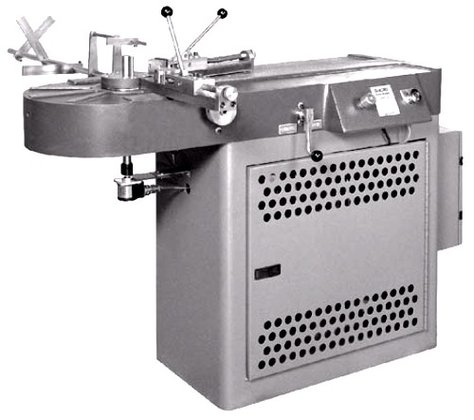

NEW DIACRO 1.5" HYDRAULIC OPERATED POWER BENDER
MODEL: #8 MADE IN THE USA
Description:
The Diacro Power Bender is a hydraulically operated unit that can
be configured for a variety of bending operations.
A wide range of standard tooling options are available for bending
various shapes of tubing, angle, channel as well as flat stock, round
stock and round tubing. Features four adjustable stops to allow bends
with varying degrees to be progressively made. Modernized controls
aid operator safety, improve reliability and provide programmable bends
as a standard feature.
PLC Controlled Bending - improves reliability, repeatability, and
reduces set up time. The new control package includes an ergonomically
positioned two-hand safety switch for added operator safety. An encoder and
adjustable "home" position proximity switch provides manual/auto selection
with a programmable function. Also included is a "real time" bend angle
display and parts counter.
The Di-Acro power bender uses the proven and robust rack and pinion
design to rotate the tooling head. The head is actuated with the larger, now
standard 4" bore cylinder. The self-contained hydrualic power unite with larger
10 gallon reservoir provides additional cooling. A variable volume, pressure-
compensated vain pump provides volume control for bending speed. A double
solenoid directional valve replaces the manual valve for improved reliability and
repeatability.
MODEL 8 SET-UP:
For bending Solid Stock. Especially suitable for bending eyebolts with
centered or off-centered eye bends in one operation.
Bending Tooling for Model #8:
- Built Up Forming Nose - Forms wider materials with special high collars.
- Radius Block - For forming solid materials to a tight radius. Requires a
standard locking pin to hold material.
- Radius Collar - Forms solid stock to larger radii. Requires standard locking pin
to hold material.
- Forming Roller - Replaces forming nose to eliminate part marking.
- Radius Pins - Shoulder Radius Pin is used for forming solid materials to a
larger radius. A quill radius pin is used for forming light material to a tight
radius. Both pins require a standard locking pin to hold material in place.
Specifications:
Max Radius Cap: 24"
Max degree of bend: 360 degrees
Hydraulic Pressure: 1,200 psi
Motor: 3hp
Wiring (specify): 208, 230, 460v, 3ph, 60hz
Torque (4" cylinder): 3,500 Machine Weight: 1,150 lbs.
Space Requirements: 55" x 22" x 40"H
Material Capabilities:
Round mild steel bar: 1"
Steel Tubing - 16ga: 1.5" OD
Standard Iron Pipe: .1" IPS
Flat Steel Bar (easy way): .375" x 4"
Flat Steel Bar (hard way): .375" x 1"
Standard Equipment:
Angle control with 4 stops
Material length gauge
Electrical Equipment conforms to JIC Electrical Standards for general purpose
machine tools.
Hydraulic cylinder - with 4" bore produces 3,500 ft/lbs for higher capacity
*CALL FOR PRICING OF THE OPTIONAL TOOLING THAT IS AVAILABLE*
