Top Seller
16Ga Thickness 36" Width Diacro
Location:
Harrison, NJ
Price:
$5,460 USD
Manufacturer:
Diacro press brakes
Model:
36

Specifications

Condition:
new
Stock number:
148571
Model 2:
36 MADE IN USA
Age info:
NEW
Weight of stand:
140 lbs (optional)
Min reverse bend:
.25"
Max forming width:
36"
Weight of machine:
470 lbs.
Max back gauge adj:
24"
Optional equipment:
(call for pricing)
Max cap, mild steel:
16ga
Max depth of box or pan:
3"
Max angle bend (one operation):
135 degrees

Description

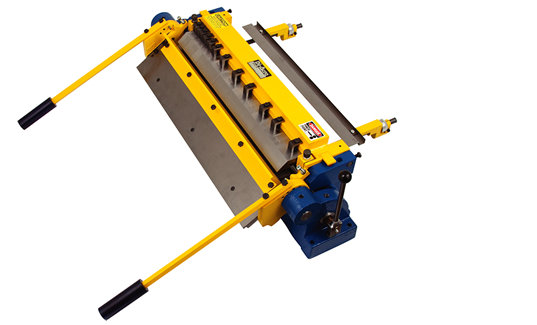

NEW DI-ACRO 36" x 16ga HAND OPERATED FINGER BRAKE
MODEL: 36 MADE IN USA
DI-ACRO FINGER BRAKES lends speed and precision to the forming of boxes, chassis & related shapes in sheet
metal. Di-Acro Finger Brakes are adjustable to enable precision bending by compensating for material thickness
and hardness. Box Fingers segments enable the operator to form boxes from 0.75" up to the full width capacity
of the machine in increments as small as 0.25".
SPECIFICATIONS:
Max Cap, Mild Steel: 16ga
Max Forming Width: 36"
Max Depth of Box or Pan: 3"
Min Reverse Bend: .25"
Max Angle Bend (one operation): 135 degrees
Max Back Gauge Adj: 24"
Weight of Machine: 470 lbs.
Weight of Stand: 140 lbs (optional)
STANDARD EQUIPMENT:
Box Fingers (brake die steel).
2 Box Fingers @ .075"
2 Box Fingers @ 1.0"
2 Box Fingers @ 1.25"
2 Box Fingers @ 3.0"
2 Box Fingers @ 6.0"
Two Adjustable stops that control angle bend.
Micro Back Gauge.
Zero Radius of standard fingers.
OPTIONAL EQUIPMENT: (call for pricing)
- Stand - heavy duty with work shelf
- 1/16" and 1/8" radius fingers.
- Finger sets
