Top Seller
0.059Ga Thickness 6" Leg Length
Location:
Harrison, NJ
Price:
$3,550 USD
Manufacturer:
Diacro
Model:
2
Weight:
70 lbs.

Specifications

Condition:
new
Stock number:
148576
Max tab:
1"
Model 2:
#2 MADE IN USA
Tonnage:
4 lbs.
Age info:
NEW
Stroke of ram:
.625"
Optional equipment:
(call for pricing)
Max cap, mild steel:
16ga (1.5mm)
Stand shipping weight:
70 lbs.
Machine shipping weight:
265 lbs.
Max 90 degree notch; one operation:
6" x 6"
Subcategory:
New notchers
Subcategory 2:
Fabricating machine

Description

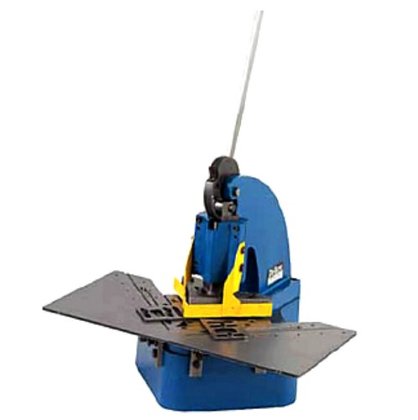

NEW DI-ACRO 6" x 6" x 16ga HAND OPERATED TAB NOTCHER
MODEL: #2 MADE IN USA
The Di-Acro Tab Notcher provides an economical means for cutting notches up to
6" x 6" x 16ga mild steel.
The machine offers adjustable upper and lower blades for making tabs or regular
notches. Tabs up to one inch are provided for adjustment. In chassis production,
overlapping tabs can be easily spot-welded to produce finish boxes.
SPECIFICATIONS:
Max Cap, mild steel: 16ga (1.5mm)
Max 90 degree notch; one operation: 6" x 6"
Max Tab: 1"
Tonnage: 4 lbs.
Stroke of Ram: .625"
Machine Shipping Weight: 265 lbs.
Stand Shipping Weight: 70 lbs.
Space requirements including optional floor stand: 24"W x 25.5"D x 71.75"H
STANDARD EQUIPMENT:
12" x 24" Work table with adjustable scales.
Adjustable self-squaring gauges.
HCHC steel notcher blades with reversible cutting edges.
OPTIONAL EQUIPMENT: (call for pricing)
Stand - w/heavy duty work shelf
Upper blade
Lower blade
NEW DI-ACRO 6" x 6" x 16ga HAND OPERATED TAB NOTCHER
MODEL: #2 MADE IN USA
The Di-Acro Tab Notcher provides an economical means for cutting notches up to
6" x 6" x 16ga mild steel.
The machine offers adjustable upper and lower blades for making tabs or regular
notches. Tabs up to one inch are provided for adjustment. In chassis production,
overlapping tabs can be easily spot-welded to produce finish boxes.
SPECIFICATIONS:
Max Cap, mild steel: 16ga (1.5mm)
Max 90 degree notch; one operation: 6" x 6"
Max Tab: 1"
Tonnage: 4 lbs.
Stroke of Ram: .625"
Machine Shipping Weight: 265 lbs.
Stand Shipping Weight: 70 lbs.
Space requirements including optional floor stand: 24"W x 25.5"D x 71.75"H
STANDARD EQUIPMENT:
12" x 24" Work table with adjustable scales.
Adjustable self-squaring gauges.
HCHC steel notcher blades with reversible cutting edges.
OPTIONAL EQUIPMENT: (call for pricing)
Stand - w/heavy duty work shelf
Upper blade
Lower blade
