Top Seller
100 Ton 12" Stroke Pressmaster
Location:
Harrison, NJ
Price:
$59,500 USD
Manufacturer:
Pressmaster
Model:
GSP-100T-4/6
Capacity:
100
Weight:
10,000 LBS.

Specifications

Condition:
new
Stock number:
148556
Bore:
8"
Return:
26 IPM
Stroke:
12"
Weight:
10,000 LBS.
Age info:
NEW
Daylight:
15.5"
Ram speed press:
20 IPM
Shipping dimensions:
88"L X 108"W X 80"H
Rated capacity, tonnage:
100
Ram travel (left to right):
36"
Table size (front to back):
72"
Table size (right to left):
48"
Subcategory 2:
Straightening presses

Description

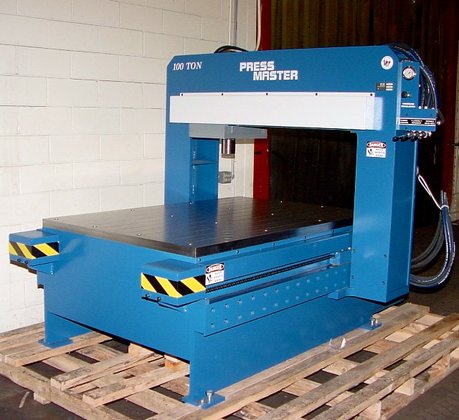

100 TON PRESSMASTER H-FRAME HYD. PRESS
MODEL GSP-100T / 46
RATED CAPACITY, TONNAGE .......................... 100
STROKE ........................................... 12"
BORE ............................................. 8"
RAM SPEED PRESS .................................. 20 IPM
RETURN ................................. 26 IPM
TABLE SIZE (RIGHT TO LEFT) ....................... 48"
TABLE SIZE (FRONT TO BACK)........................ 72"
DAYLIGHT ......................................... 15.5"
RAM TRAVEL (LEFT TO RIGHT) ....................... 36"
MOTOR SPECS ....(230/460/575 AVAILABLE)........... 10 HP / 3 PHASE
WEIGHT ........................................... 10,000 LBS.
SHIPPING DIMENSIONS .............................. 88"L X 108"W X 80"H
STANDARD FEATURES:
- POWERED MOVAEABLE WORKHEAD - FOR OFF CENTER WORK ALLOWS OPERATOR TO POSITION THE
CYLINDER FROM LEFT TO RIGHT AND FRONT TO BACK WITH THE TOUCH OF A LEVER.
- CYLINDER ACTIVATION - IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE
MORE THE RAM MOVEMENT IS ACCELERATED. THIS ALLOWS THE OPERATOR TO CONTROL THE PROPER
SPEED FOR THE TASK.
- PRESSURE REGULATOR - LIMITS RAM PRESSURE.
- FLAT RAM NOSE - CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS TO A
SPECIFIC JOB.
- LOW PRESSURE - HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES, RESULTING IN HIGHER
EFFICIENCY AND SAFER OPERATION.
- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE
THROUGHOUT NORTH AMERICA.
- OPTIONAL MOVEABLE PEDESTAL C/W HEIGHT ADJUSTMENT FOR EASE AND COMFORT OF OPERATOR
- FULL ONE YEAR WARRANTY.
- NOT A CHEAP IMPORT. MANUFACTURED IN CANADA WITH QUALITY US & CANADIAN COMPONENTS.
* 150 TON 4' X 8' BED ALSO AVAILABLE ....... $69,500
