Top Seller
15.7" X AXIS 11.8" Y
Location:
Harrison, NJ
Price:
$29,800 USD
Manufacturer:
RAM edm machines
Model:
ZNC-410

Specifications

Condition:
new
Stock number:
149142
Model 2:
ZNC-410 Made In Taiwan
Age info:
New
Work table:
25.6 x 13.8"
Power input:
4.5 KVA
Packing size:
59" x 50" x 86"H
Max work piece:
39" x 23" x 17"
X & y axis travel:
15.7" x 11.8"
Machine net weight:
2,860 lbs.
Work tank capacity:
111 gal
Electrode wear ratio:
0.2%
Max electrode weight:
264 lbs.
W axis (head) travel:
9.4"
Max work piece weight:
1,320 lbs.
Z axis (quill) travel:
7.3"
Best surface roughness:
0.20
Work table area (l & w):
25.6" x 13.8"
Subcategory:
Edm's
Subcategory 2:
New ram type edm

Description

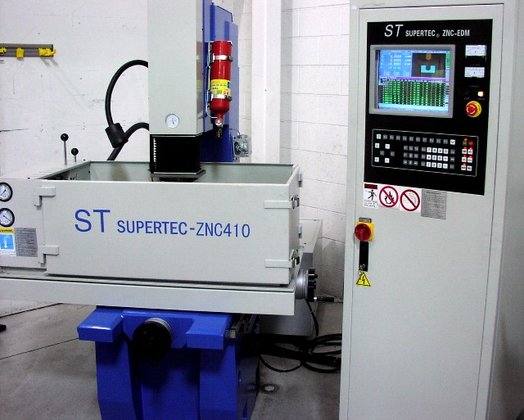

New Supertec Z-Axis NC Die Sinker EDM w/50 Amp Power Supply
Model: ZNC-410 Made In Taiwan
Machine Specifications
X & Y Axis Travel: 15.7" x 11.8"
Z Axis (quill) travel: 7.3"
W Axis (head) travel: 9.4"
Dist. between work table and machine head: 2.8" - 20.4"
Work Table: 25.6 x 13.8"
Max Work Piece: 39" x 23" x 17"
Max Work Piece Weight: 1,320 lbs.
Max electrode weight: 264 lbs.
Work Tank capacity: 111 gal
Work Table area (L & W): 25.6" x 13.8"
Machine Net Weight: 2,860 lbs.
Packing size: 59" x 50" x 86"H
Currancy 30 Amps
Power Input: 4.5 KVA
Max Metal Removal Rate Cubic Inch/Hr: 1.46
Electrode Wear Ratio%: 0.2%
Best Surface Roughness: 0.20
ZNC Features:
An arc detection device allows for high speed burning of deep and fine holes.
The SL circuit helps reduce electrode wear up to 50%.
The one VEE and one FLAT slideways are Turcite-B coated to ensure smooth
movement even under heavy loads.
The table surface is heat treated for high rigidity and longer wear resistance.
Precision ground ballscrews couples with servo motors in the X and Y axis
provide smooth accurate movement and precise repeatability.
The machine head travels on precision linear guideways with a servo motor
to ensure accurate movement and repeatability.
User friendly shop floor conversational language on a 15" color screen allows
for easy programming.
The PC desinged control allows for digitizing ARC detection for high speed
burning of deep fine holes.
Multiple fully automatic anti-fire systems are installed as a comprehensive
safety guard.
Automatic lubrication system on the Z axis linear guide ways help promote
smooth movement and longer machiner life.
Standard Accessories:
Machine lamp
One shot lube
Nozzles (2)
1/2" Drill Chuck
Automatic fire extinguisher
Oil filter (2)
Tool box with tools
Operating manual, parts list and accuracty report
