2HP Spindle Clausing BF35RS DRILL
Location:
Harrison, NJ
Price:
$59,500 USD
Manufacturer:
Clausing presses
Model:
BF35RS
Capacity:
1.80"

Specifications

Condition:
new
Stock number:
149162
Height:
81.9"
Maximum:
23.23"
Minimum:
0"
Age info:
NEW
X travel:
27.56"
Y travel:
14.17"
Base width:
29.53"
Overall width:
61.81"
Spindle taper:
ISO-30
Overall length:
57.1"
Quill diameter:
2.95"
Auto feed range:
in/rev. .0039/.0079/.0118
Main motor power:
1.5/2 HP
Number of speeds:
18
Maximum head height:
94.5"
Head geared-motor power:
.1 HP
Coolant pump motor power:
.12 HP
Spindle center to column:
15.08"
Number of automatic feeds:
3
Spindle travel (drilling depth):
7.87"
-maximum milling capacity in steel:
1.80"
-maximum tapping capacity in steel:
1.18"
-maximum drilling capacity in steel:
1.38"
Optional spindle taper (on request):
4MT
Subcategory:
New drill presses

Description

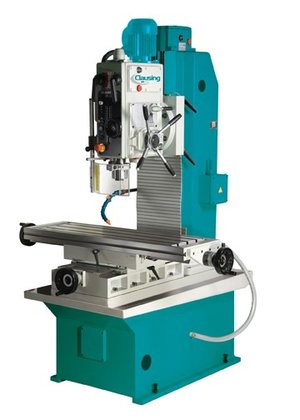

NEW CLAUSING/IBARMIA PRISMATIC COLUMN DRILL
MILL/DRILL, GEARED-HEAD, 30 TAPER
w/AUTOMATIC FEED REVERSING SYSTEM FOR TAPPING
MODEL: BF35RS
SPECIFICATIONS:
Spindle taper: ISO-30
Optional spindle taper (on request): 4MT
Quill diameter: 2.95"
Spindle travel (drilling depth): 7.87"
Main motor power: 1.5/2 HP
Coolant pump motor power: .12 HP
Head geared-motor power: .1 HP
Number of speeds: 18
Number of automatic feeds: 3
Auto feed range: in/rev. .0039/.0079/.0118
STANDARD FEATURES & EQUIPMENT:
-Maximum drilling capacity in steel: 1.38"
-Maximum drilling capacity in cast iron: 1.57"
-Maximum milling capacity in steel: 1.80"
-Maximum milling capacity in cast iron: 3.20"
-Maximum tapping capacity in steel: 1.18"
-Maximum tapping capacity in cast iron: 1.30"
-18 spindle speeds
-Automatic feed reversing system for tapping
-Adjustable vertical position of head by geared-motor
-Head rotates 45 degrees left or right of center
-Large worktable with 3 T-slots
-Hardened and ground high quality steel gears
-Gear box lubrication by automatic pump
-Guide ways lubricated by manual pump
-Speed plate and selecting levers on front of head
-High/low speed range selector
-Coolant tank and pump in machine base
-Co-ordinate cross slide table
-Automatic feed and cut-off by electromagnetic clutch
-Work light
-Front hand wheel for fine feed work
-Depth scale and adjustable depth stop
-Built-in low voltage electrical equipment in column rear
-Emergency STOP
-Spindle turn selection switch
-Drill guard with microswitch
DIMENSIONS:
Height: 81.9"
Overall length: 57.1"
Spindle to Table:
Minimum: 0"
Maximum: 23.23"
Spindle center to column: 15.08"
Maximum head height: 94.5"
Worktable: WxHxL: 14.17" x 35.43" x 47.24"
Base width: 29.53"
Overall width: 61.81"
X travel: 27.56"
Y travel: 14.17"
OPTIONAL EQUIPMENT
(CALL FOR PRICING):
-Cross Table 22.4" x 10.2"
-Cycle Start Foot Pedal
-Foot Pedal For Reversing
-Pitch Controlled Tapping*
-Pitch Controlled Tapping w/Braking System*
-Master Guide Spindle w/Nut Set*
-Master Guide Spindle w/Nut Set & Special Thread (inches etc.)*
-Column Enlargement*
-Column Riser*
-Motorized Gearbox Feed System in X*
-Motorized Gearbox Feed System in Y*
-Servo Feed X Axis*
-Servo Feed Y Axis*
-Digital Readout System (X Axis)*
-Digital Readout System (X, Y Axis)*
-Digital Readout System (X, Y, Z Axis)*
-ISO 30 Spindle*
-ISO 40 Spindle*
-Quick Change Nut for ISO-30*
-Automatic Tool Quick Change for ISO Spindle*
-Safety Drill Guard w/Microswitch for Mutli-Spindle*
*Factory Installed
WARRANTY:
Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not
cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
**Due to continual improvements, prices and specifications subject to change without notice**
