2002 72" Table New Century
Location:
Harrison, NJ
Manufacturer:
Century boring mills
Model:
TURN 60

Specifications

Condition:
used
Year:
2002
Stock number:
149285b
Tooling:
SANDVIK CAPTO C6 60MM
Category 2:
Boring Mills
Axis rapids:
400 INCH/MIN
Spindle rpm:
0-480 RPM
X axis travel:
68.5"
Z axis travel:
47 5/8"
Axis feed rates:
0-400 INCH/MIN
(3) chuck diameter:
60"
Spindle gear ranges:
2
Approximate dimensions:
214"(LR) X 135"(FB) X 97"(H)
Ram head travel z axis:
28.5"
Maximum swing in guards:
72"
Spindle horse power (hp):
25/40 HP
V axis travel of carriage:
22.7"
Maximum swing in (24") gap:
98"
Max dist face of chuck to ram face:
51.0"
Subcategory:
Cnc machines

Description

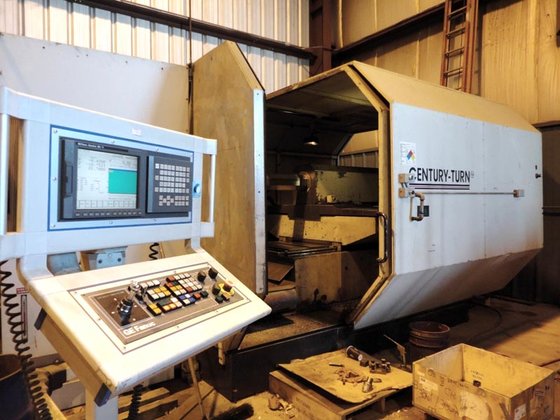

NEW CENTURY CENTURY CNC LATHE
MODEL: TURN 60, NEW: 2002
SPECIFICATIONS:
MAXIMUM SWING IN GUARDS ................ 72"
MAXIMUM SWING IN (24") GAP ............. 98"
(3) CHUCK DIAMETER ..................... 60"
SPINDLE RPM ............................ 0-480 RPM
SPINDLE HORSE POWER (HP) ............... 25/40 HP
SPINDLE GEAR RANGES .................... 2
MAX DIST FACE OF CHUCK TO RAM FACE ..... 51.0"
X AXIS TRAVEL .......................... 68.5"
Z AXIS TRAVEL .......................... 47 5/8"
V AXIS TRAVEL OF CARRIAGE .............. 22.7"
RAM HEAD TRAVEL Z AXIS ................. 28.5"
AXIS RAPIDS ............................ 400 INCH/MIN
AXIS FEED RATES ........................ 0-400 INCH/MIN
TOOLING ................................ SANDVIK CAPTO C6 60MM
APPROXIMATE DIMENSIONS ................. 214"(LR) X 135"(FB) X 97"(H)
EQUIPPED WITH:
- 60" 3 JAW MANUAL CHUCK WITH SCROLLING JAWS
- G.E.FANUC 18IT CNC CONTROL
- 10 POSITION AUTOMATIC TOOL CHANGER
- TURBO CHIP CONVEYOR
- SANVIK C-6 TOOLING, APPROX 15 TOOL
- STAINLESS STEEL WAY COVERS
- FULL ENCLOSURES
- MANUAL PULSE GENERATOR
- COOLANT THROUGH TOOL WITH DUAL COOLANT TANKS
- ALL DOCUMENTATION AN MANUALS
CONSTRUCTION DESCRIPTION
- THE BASE IS A STURDY SINGLE STRUCTURE POLYMERGRANITE 22,000 LBS
- X AXIS WAYS ARE 55 MM IKO LINEAR RAIL WITH 4 ROLLER BEARINGS PER HEAD
- Z AXIS HEAD IS A POLYMER GRANITE HEAD WITH HEAVY DUTY RAM
AND 4 GIBBS WITH TURCITE
- 4 BALLSCREWS ARE 63 DIAMETER 10MM LEAD
- SPINDLE IS 2 TIMKEN ROLLER BEARINGS 12 1/2" DIAMETER
AND 32,000 LBS. LOAD CAPACITY EACH
- ENCLOSURE IS REINFORCED STEEL
