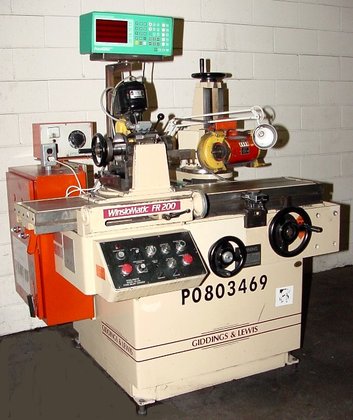

1992 Giddings & Lewis Winslowmatic
Location:
Harrison, NJ
Model:
Winslowmatic FR-200 FORM RELIEVING GRINDER
Weight:
3,200 LBS.

Specifications

Condition:
used
Year:
1992
Serial number:
946-0080-92
Stock number:
149339
Radial relief:
0 TO 0.100"
Platen table size:
14" X 60"
Approx. floor space:
86" x 60"
Platen table travel:
26"
Approx. machine weight:
3,200 LBS.
Grinding spindle tilts:
+/- 25 DEG.
Grinder spindle swivels:
360 DEGREES
Grinding spindle, max. height:
9- 1/4"
Grinder spindle vertical travel:
7-1/2"
Relieving fixture, axial relief:
0 TO 0.250"
Cross slide handwheel, graduated to:
0.0005"

Description

GIDDINGS & LEWIS (WINSLOW ENGINEERING) FORM RELIEVING GRINDER
MODEL: FR-200 S/N: 946-0080-92 NEW: 1992
IDEAL FOR ALL THESE TYPES OF TOOLS:
-SUBLAND, STEP & CENTER DRILLS
-COUNTERSINK, SPOTFACE, PORTING & TREPANNING TOOLS
-TAPS, REAMERS, PUNCH INSERTS & FORM TOOLS
CAM-GENERATED MOTION & ROTATION OF THE TOOL ASSURES
CONCENTRIC CUTTING SURFACES
GRINDS TOOLS WITH 1 THRU 18 FLUTES
PLATEN TABLE SIZE ................................... 14" X 60"
PLATEN TABLE TRAVEL ................................. 26"
CROSS SLIDE HANDWHEEL, GRADUATED TO ................. 0.0005"
GRINDER SPINDLE VERTICAL TRAVEL ..................... 7-1/2"
GRINDING SPINDLE, MAX. HEIGHT ....................... 9- 1/4"
GRINDING SPINDLE TILTS .............................. +/- 25 DEG.
GRINDER SPINDLE SWIVELS . ........................... 360 DEGREES
RELIEVING FIXTURE, AXIAL RELIEF ..................... 0 TO 0.250"
RADIAL RELIEF ....................................... 0 TO 0.100"
APPROX. FLOOR SPACE ................................. 86" x 60"
APPROX. MACHINE WEIGHT .............................. 3,200 LBS.
EQUIPPED WITH:
"PATHFINDER" 2-AXIS DIGITAL READOUT DISPLAY
MOTORIZED RELIEVING FIXTURE W/INFINITELY VARIABLE
SPEED PROVIDED BY SCR DRIVE
"PRECISE" HIGH SPEED INTERNAL GRINDING SPINDLE WITH
INDEPENDENT ELECTRONIC VARIABLE SPEED SPINDLE CONTROLLER.
I.D. SPINDLE IS MOUNTED ON VERTICAL COLUMN BEHIND THE
O.D. WHEELHEAD.
(6) CAMS WITH INDEX PLATES
MACHINE FEATURES:
TABLE SLIDES FREELY ON HARDENED ROUND WAYS & PRECISION
BALL BUSHINGS FOR EASY OPERATION& LONG LIFE. HANDWHEEL
IS OPERATED THROUGH A TWO-SPEED GEARBOX. COARSE FEED OF
3- 1/2" PER HANDWHEEL REVOLUTION. FINE FEED IS .134"
PER HANDWHEEL REVOLUTION.
SPINDLE ASSEMBLY IS MOUNTED ON A FRICTION FREE ROLLER
BEARING "X"& "Y" AXIS TABLE BASE.
"POPE" GRINDING WHEEL SPINDLE, 1 H.P. /3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS
SPECIAL NOTE:
G & L SOLD THE COMPLETE "WINSLOW" PRODUCT LINE IN 2001
TO FORMER WINSLOW ENGINEERS. THEY HAVE NAMED THE COMPANY
"WINSLOW ENGINEERING"& ARE LOCATED IN FOND DU LAC, WI.
THE WEBSITE FOR THEIR INFORMATION IS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
*** EXCEPTIONAL CONDITION & APPEARANCE ***
