36" Swing 120" Centers Birmingham
Location:
Harrison, NJ
Price:
$37,400 USD
Manufacturer:
Birmingham lathes
Model:
KGC-36120

Specifications

Condition:
new
Stock number:
149465
Age info:
NEW
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

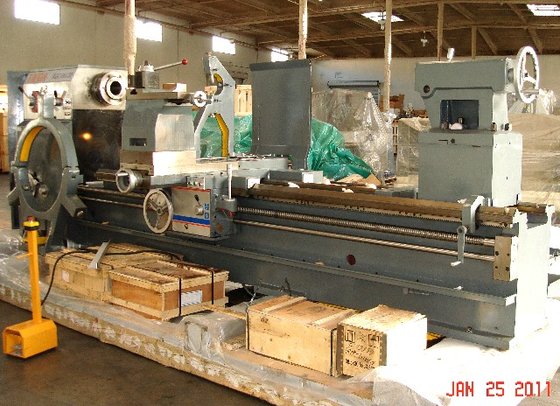

NEW Birmingham 36" x 120" Gap Bed Engine Lathe
Model: KGC-36120
SPECIFICATIONS:
Swing over bed 36-3/4"
Swing in gap 43-1/4"
Swing over cross slide 25-3/4"
Distance between centers 120"
Length in gap from face plate 12"
Spindle nose D-11
Spindle bore 4" (5" optional)
Spindle speeds 10-800 RPM / 18 Step
Cross slide travel 18-3/4"
Top rest travel 8-3/4"
Quill diameter 3-1/2"
Quill travel 10-1/4"
Quill taper MT5
Bed width 21-3/4"
Motor 15hp
L x W x H 210" x 55" x 80"
Gross weight 14,550 lbs
STANDARD ACCESSORIES:
3/4"-5 1/2" Follow Rest
32" Face Plate
Drive Plate
Thread Cutting Dial
Dead Center
Center Sleeve
Coolant System
Work Light
Foot Brake
Pads and foundation bolts
Four Way Rapid Traverse
OPTIONAL ACCESSORIES (call for pricing):
5-1/8" Spindle Bore
Taper Turning Attachment
Power Tailstock
Compound Power Feed
DRO
