Top Seller
48" Swing 180" Centers Birmingham
Location:
Harrison, NJ
Price:
$48,900 USD
Manufacturer:
Birmingham lathes
Model:
KGC-48180

Specifications

Condition:
new
Stock number:
149519
Age info:
NEW
Rapid traverse z,x:
128", 76"
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

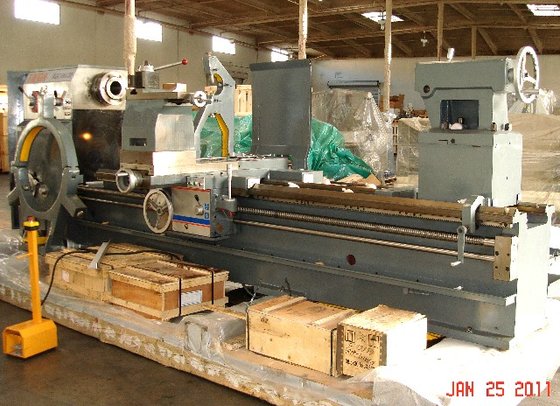

NEW Birmingham 48" x 180" Gap Bed Engine Lathe
Model: KGC-48180
SPECIFICATIONS:
Swing over bed 48"
Swing in gap 55"
Swing over cross slide 35"
Distance between centers 180"
Length in gap from face plate 15"
Spindle nose D-11
Spindle bore 4" (5" optional)
Spindle speeds 10-800 RPM / 18 Step
Cross slide travel 24"
Top rest travel 8-3/4"
Rapid traverse Z,X: 128", 76"
Quill diameter 5"
Quill travel 10-1/2"
Quill taper MT6
Bed width 24"
Longitudinal feeds 1/40"-3/4"
Cross feeds 1/625"-3/8"
Motor 15hp
L x W x H 263" x 68" x 82"
Gross weight 18,960 lbs
STANDARD ACCESSORIES:
15" 3 Jaw Chuck
20" 4 Jaw Chuck
20" Steady Rest
3/4"-5 1/2" Follow Rest
32" Face Plate
Drive Plate
Thread Cutting Dial
Dead Center
Center Sleeve
Coolant System
Work Light
Foot Brake
Pads and foundation bolts
Four Way Rapid Traverse
OPTIONAL ACCESSORIES (call for pricing):
5-1/8" Spindle Bore
Taper Turning Attachment
Power Tailstock
Compound Power Feed
DRO
