Top Seller
56" Swing 120" Centers Birmingham
Location:
Harrison, NJ
Price:
$54,600 USD
Manufacturer:
Birmingham lathes
Model:
KGC-56120

Specifications

Condition:
new
Stock number:
149523
Age info:
NEW
Rapid traverse z,x:
128", 76"
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

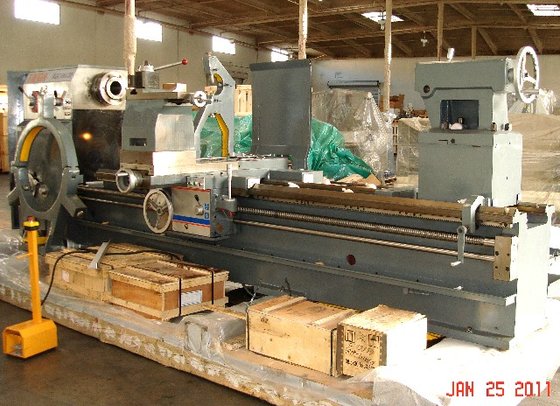

NEW Birmingham 56" x 120" Gap Bed Engine Lathe
Model: KGC-56120
SPECIFICATIONS:
Swing over bed 56"
Swing in gap 63"
Swing over cross slide 43"
Distance between centers 120"
Length in gap from face plate 15"
Spindle nose D-11
Spindle bore 4" (5" optional)
Spindle speeds 7-576 RPM / 18 Step
Cross slide travel 28"
Top rest travel 11-3/4"
Rapid traverse Z,X: 128", 76"
Quill diameter 5"
Quill travel 10-1/2"
Quill taper MT6
Bed width 24"
Longitudinal feeds 1/40"-3/4"
Cross feeds 1/625"-3/8"
Motor 15hp
L x W x H 205" x 74" x 88"
Gross weight 17,860 lbs
STANDARD ACCESSORIES:
20" 3 Jaw Chuck
24" 4 Jaw Chuck
28" Steady Rest
3/4"-5 1/2" Follow Rest
40" Face Plate
Drive Plate
Thread Cutting Dial
Dead Center
Center Sleeve
Coolant System
Work Light
Foot Brake
Pads and foundation bolts
Four Way Rapid Traverse
OPTIONAL ACCESSORIES (call for pricing):
5-1/8" Spindle Bore
Taper Turning Attachment
Power Tailstock
Compound Power Feed
DRO
