Top Seller
64" Swing 60" Centers Birmingham
Location:
Harrison, NJ
Price:
$55,800 USD
Manufacturer:
Birmingham lathes
Model:
KGC-6460

Specifications

Condition:
new
Stock number:
149526
Age info:
NEW
Rapid traverse z,x:
128", 76"
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

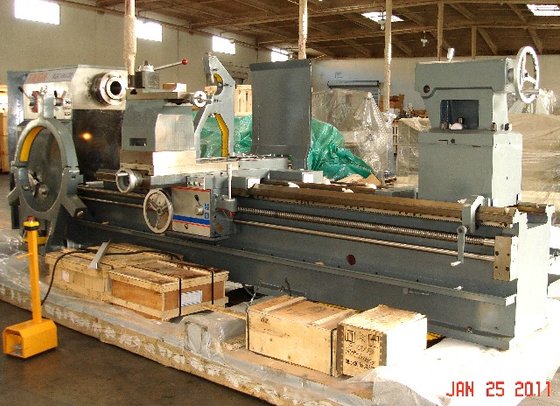

NEW Birmingham 64" x 60" Gap Bed Engine Lathe
Model: KGC-6460
SPECIFICATIONS:
Swing over bed 64"
Swing in gap 70"
Swing over cross slide 50"
Distance between centers 60"
Length in gap from face plate 15"
Spindle nose D-11
Spindle bore 4" (5" optional)
Spindle speeds 7-576 RPM / 18 Step
Cross slide travel 32"
Top rest travel 11-3/4"
Rapid traverse Z,X: 128", 76"
Quill diameter 5"
Quill travel 10-1/2"
Quill taper MT6
Bed width 24"
Longitudinal feeds 1/40"-3/4"
Cross feeds 1/625"-3/8"
Motor 15hp
L x W x H 152" x 80" x 90"
Gross weight 17,200 lbs
STANDARD ACCESSORIES:
20" 3 Jaw Chuck
24" 4 Jaw Chuck
28" Steady Rest
3/4"-5 1/2" Follow Rest
48" Face Plate
Drive Plate
Thread Cutting Dial
Dead Center
Center Sleeve
Coolant System
Work Light
Foot Brake
Pads and foundation bolts
Four Way Rapid Traverse
OPTIONAL ACCESSORIES (call for pricing):
5-1/8" Spindle Bore
Taper Turning Attachment
Power Tailstock
Compound Power Feed
DRO
