Top Seller
72" Swing 180" Centers Birmingham
Location:
Harrison, NJ
Price:
$76,500 USD
Manufacturer:
Birmingham lathes
Model:
KGC-72180

Specifications

Condition:
new
Stock number:
149535
Age info:
NEW
Rapid traverse z,x:
128", 76"
Subcategory:
New lathes
Subcategory 2:
Toolroom machines

Description

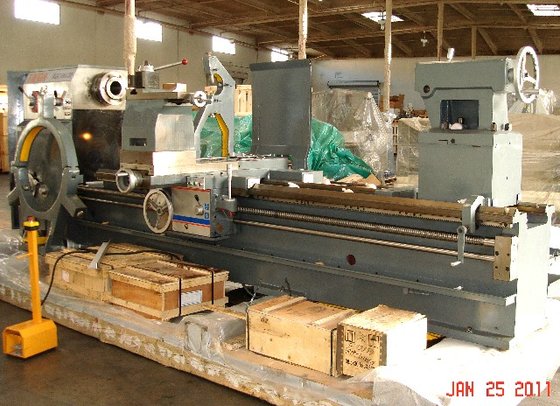

NEW Birmingham 72" x 180" Gap Bed Engine Lathe
Model: KGC-72180
SPECIFICATIONS:
Swing over bed 72"
Swing in gap 78"
Swing over cross slide 58"
Distance between centers 180"
Length in gap from face plate 15"
Spindle nose D-11
Spindle bore 4" (5" optional)
Spindle speeds 6-480 RPM / 18 Step
Cross slide travel 36"
Top rest travel 11-3/4"
Rapid traverse Z,X: 128", 76"
Quill diameter 5"
Quill travel 10-1/2"
Quill taper MT6
Bed width 24"
Longitudinal feeds 1/40"-3/4"
Cross feeds 1/625"-3/8"
Motor 15hp
L x W x H 263" x 88" x 94"
Gross weight 23,370 lbs
STANDARD ACCESSORIES:
20" 3 Jaw Chuck
24" 4 Jaw Chuck
28" Steady Rest
3/4"-5 1/2" Follow Rest
56" Face Plate
Drive Plate
Thread Cutting Dial
Dead Center
Center Sleeve
Coolant System
Work Light
Foot Brake
Pads and foundation bolts
Four Way Rapid Traverse
OPTIONAL ACCESSORIES (call for pricing):
5-1/8" Spindle Bore
Taper Turning Attachment
Power Tailstock
Compound Power Feed
DRO
