Top Seller
37.41" Arm 8.25" Column Victor
Location:
Harrison, NJ
Price:
$11,200 USD
Manufacturer:
Victor
Model:
837
Weight:
2,860 lb.

Specifications

Condition:
new
Stock number:
149546
Steel:
1.25"
Steel 2:
0.875"
Steel 3:
2.75"
Age info:
NEW
Cast iron:
1.97"
Main motor:
2 HP, 3 phase
Net weight:
2,860 lb.
Cast iron 2:
0.875"
Cast iron 3:
4.17"
Gross weight:
3,190 lb.
Spindle stroke:
8.25"
Elevating motor:
1 HP
Coolant pump motor:
1/8 HP
Diameter of column:
8.25"
Dimensions of base:
49-5/8" x 25-3/16" x 6-9/32"
Taper hole spindle:
MT#4
Travel of spindle head:
28.75"
Elevating height of arm:
25.56"
Machine height from floor:
91.38"
Effective area of box table:
23-7/16" x 17-23/32" x 14-31/32"
Maximum distance (col./spl):
37.41"
Shipping dimensions (lxwxh):
71" x 33" x 86"
Minimum distance (col./spl)):
8.625"
Spindle feeds (rev. x steps):
0.002"; 0.0035"; 0.0059" x 3
Spindle speeds (rpm x steps):
88; 154; 282; 455; 796; 1,500 x 6
Max. dist. base surface/spindle end:
47.625"
Min. dist. base surface/spindle end:
13.75"
Subcategory:
New radial drills

Description

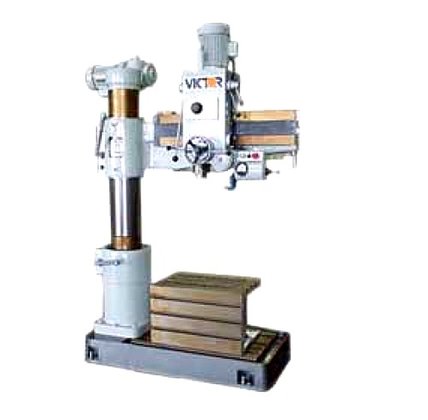

NEW VICTOR 8" x 37" RADIAL DRILL
MODEL: 837
SPECIFICATIONS
Dimensions:
Diameter of column: 8.25"
Maximum distance (col./spl): 37.41"
Minimum distance (col./spl)): 8.625"
Travel of spindle head: 28.75"
Max. dist. base surface/spindle end: 47.625"
Min. dist. base surface/spindle end: 13.75"
Elevating height of arm: 25.56"
Effective area of box table: 23-7/16" x 17-23/32" x 14-31/32"
Dimensions of base: 49-5/8" x 25-3/16" x 6-9/32"
Machine height from floor: 91.38"
Shipping dimensions (LxWxH): 71" x 33" x 86"
Capacity:
Drill capacity:
Steel: 1.25"
Cast Iron: 1.97"
Tapping capacity:
Steel: 0.875"
Cast Iron: 0.875"
Boring capacity:
Steel: 2.75"
Cast Iron: 4.17"
Spindle:
Taper hole spindle: MT#4
Spindle stroke: 8.25"
Spindle speeds (rpm x steps): 88; 154; 282; 455; 796; 1,500 x 6
Spindle feeds (rev. x steps): 0.002"; 0.0035"; 0.0059" x 3
Power:
Main motor: 2 HP, 3 phase
Elevating motor: 1 HP
Coolant pump motor: 1/8 HP
Weight:
Net weight: 2,860 lb.
Gross weight: 3,190 lb.
