Top Seller
48.5" Arm 11.2" Column Victor
Location:
Harrison, NJ
Price:
$18,900 USD
Manufacturer:
Victor
Model:
1148
Weight:
4,620 lb.

Specifications

Condition:
new
Stock number:
149547
Steel:
1.56"
Steel 2:
0.75"
Steel 3:
3.38"
Age info:
NEW
Cast iron:
2.19"
Main motor:
3 HP, 3 phase (2-speed motor)
Net weight:
4,620 lb.
Cast iron 2:
0.75"
Cast iron 3:
4.75"
Gross weight:
4,950 lb.
Clamping motor:
1 HP
Spindle stroke:
9.875"
Elevating motor:
1 HP
Coolant pump motor:
1/8 HP
Diameter of column:
11.2"
Dimensions of base:
67-3/4" x 28" x 6-1/2"
Taper hole spindle:
MT#4
Travel of spindle head:
35"
Elevating height of arm:
34.63"
Machine height from floor:
109-1/2"
Effective area of box table:
24-3/4" x 20-1/2" x 16-1/2"
Maximum distance (col./spl):
48.5"
Shipping dimensions (lxwxh):
80" x 39" x 89"
Minimum distance (col./spl)):
13.38"
Spindle feeds (rev. x steps):
0.002"; 0.0035"; 0.0059" x 3
Spindle speeds (rpm x steps):
44; 77; 88; 141; 154; 228; 282; 398; 456; 750; 796; 1,500 x 12
Max. dist. base surface/spindle end:
54"
Min. dist. base surface/spindle end:
19.38"
Subcategory:
New radial drills

Description

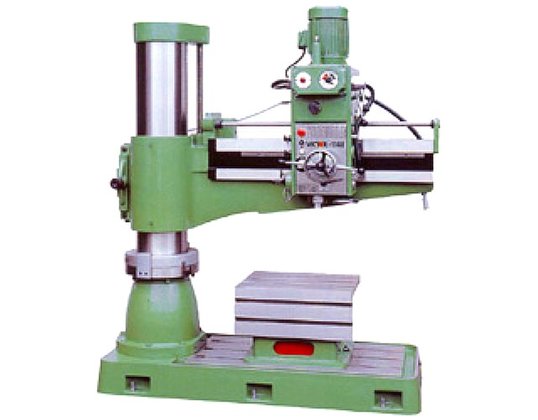

NEW VICTOR 11" x 48" RADIAL DRILL
MODEL: 1148
SPECIFICATIONS
Dimensions:
Diameter of column: 11.2"
Maximum distance (col./spl): 48.5"
Minimum distance (col./spl)): 13.38"
Travel of spindle head: 35"
Max. dist. base surface/spindle end: 54"
Min. dist. base surface/spindle end: 19.38"
Elevating height of arm: 34.63"
Effective area of box table: 24-3/4" x 20-1/2" x 16-1/2"
Dimensions of base: 67-3/4" x 28" x 6-1/2"
Machine height from floor: 109-1/2"
Shipping dimensions (LxWxH): 80" x 39" x 89"
Capacity:
Drill capacity:
Steel: 1.56"
Cast Iron: 2.19"
Tapping capacity:
Steel: 0.75"
Cast Iron: 0.75"
Boring capacity:
Steel: 3.38"
Cast Iron: 4.75"
Spindle:
Taper hole spindle: MT#4
Spindle stroke: 9.875"
Spindle speeds (rpm x steps): 44; 77; 88; 141; 154; 228; 282; 398; 456; 750; 796; 1,500 x 12
Spindle feeds (rev. x steps): 0.002"; 0.0035"; 0.0059" x 3
Power:
Main motor: 3 HP, 3 phase (2-speed motor)
Elevating motor: 1 HP
Clamping motor: 1 HP
Coolant pump motor: 1/8 HP
Weight:
Net weight: 4,620 lb.
Gross weight: 4,950 lb.
OPTIONAL
(call for pricing)
440V Conversion
