Top Seller
10.25" Arm 43.31" Column Victor
Location:
Harrison, NJ
Price:
$14,600 USD
Manufacturer:
Victor
Model:
1043
Weight:
3,960 lb.

Specifications

Condition:
new
Stock number:
149554
Steel:
1.56"
Steel 2:
0.75"
Steel 3:
3.38"
Age info:
NEW
Cast iron:
2.19"
Main motor:
3 HP, 3 phase (2-speed motor)
Net weight:
3,960 lb.
Cast iron 2:
0.75"
Cast iron 3:
4.75"
Gross weight:
4,290 lb.
Spindle stroke:
9"
Elevating motor:
1 HP
Coolant pump motor:
1/8 HP
Diameter of column:
10.25"
Dimensions of base:
67-3/4" x 28" x 6-1/2"
Taper hole spindle:
MT#4
Travel of spindle head:
33.625"
Elevating height of arm:
24"
Machine height from floor:
100"
Effective area of box table:
24-3/4" x 20-1/2" x 16-1/2"
Maximum distance (col./spl):
43.31"
Shipping dimensions (lxwxh):
74" x 34" x 89"
Minimum distance (col./spl)):
9.625"
Spindle feeds (rev. x steps):
0.002"; 0.0035"; 0.0059" x 3
Spindle speeds (rpm x steps):
44; 77; 88; 141; 154; 228; 282; 398; 456; 750; 796; 1,500 x 12
Max. dist. base surface/spindle end:
50.375"
Min. dist. base surface/spindle end:
12.625"
Subcategory:
New radial drills

Description

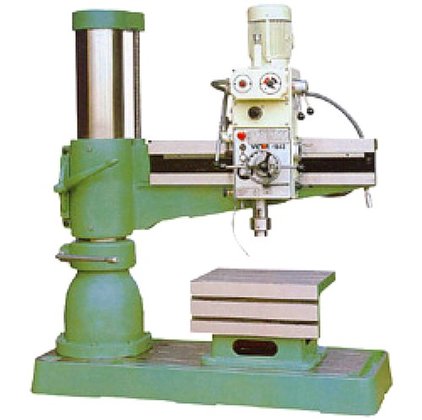

NEW VICTOR 10" x 43" RADIAL DRILL
MODEL: 1043
SPECIFICATIONS
Dimensions:
Diameter of column: 10.25"
Maximum distance (col./spl): 43.31"
Minimum distance (col./spl)): 9.625"
Travel of spindle head: 33.625"
Max. dist. base surface/spindle end: 50.375"
Min. dist. base surface/spindle end: 12.625"
Elevating height of arm: 24"
Effective area of box table: 24-3/4" x 20-1/2" x 16-1/2"
Dimensions of base: 67-3/4" x 28" x 6-1/2"
Machine height from floor: 100"
Shipping dimensions (LxWxH): 74" x 34" x 89"
Capacity:
Drill capacity:
Steel: 1.56"
Cast Iron: 2.19"
Tapping capacity:
Steel: 0.75"
Cast Iron: 0.75"
Boring capacity:
Steel: 3.38"
Cast Iron: 4.75"
Spindle:
Taper hole spindle: MT#4
Spindle stroke: 9"
Spindle speeds (rpm x steps): 44; 77; 88; 141; 154; 228; 282; 398; 456; 750; 796; 1,500 x 12
Spindle feeds (rev. x steps): 0.002"; 0.0035"; 0.0059" x 3
Power:
Main motor: 3 HP, 3 phase (2-speed motor)
Elevating motor: 1 HP
Coolant pump motor: 1/8 HP
Weight:
Net weight: 3,960 lb.
Gross weight: 4,290 lb.
OPTIONAL
(call for pricing)
440V Conversion
