Top Seller
49.21" Arm 11.81" Column Victor
Location:
Harrison, NJ
Price:
$24,050 USD
Manufacturer:
Victor
Model:
1249H
Weight:
5,070 lb.

Specifications

Condition:
new
Stock number:
149555
Steel:
1.97"
Steel 2:
1.57"
Age info:
NEW
Cast iron:
2.36"
Main motor:
5 HP, 3 phase (2-speed motor)
Net weight:
5,070 lb.
Cast iron 2:
1.97"
Gross weight:
5,510 lb.
Clamping motor:
1 HP hydraulic
Spindle speeds:
56~1,450 rpm x 12 steps
Spindle stroke:
10.63"
Elevating motor:
1 HP
Coolant pump motor:
1/8 HP
Diameter of column:
11.81"
Dimensions of base:
70.28" x 30.91" x 7.48"
Taper hole spindle:
MT#5
Travel of spindle head:
35.04"
Elevating height of arm:
24.41"
Machine height from floor:
104.13"
Effective area of box table:
25.00" x 20.47" x 16.54"
Maximum distance (col./spl):
49.21"
Shipping dimensions (lxwxh):
82" x 40" x 89"
Minimum distance (col./spl)):
14.17"
Spindle feeds (rev. x steps):
0.0024"; 0.0039"; 0.0079" x 3
Max. dist. base surface/spindle end:
52.95"
Min. dist. base surface/spindle end:
17.32"
Subcategory:
New radial drills

Description

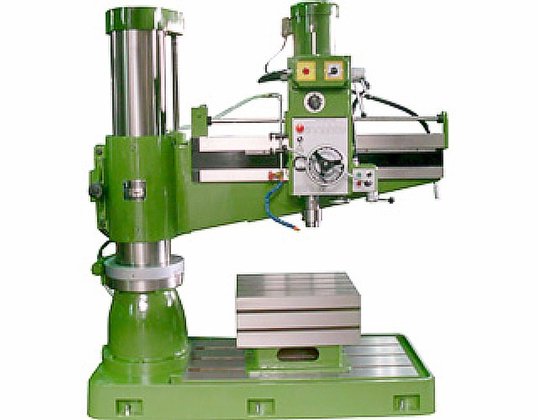

NEW VICTOR 12" x 49" RADIAL DRILL
MODEL: 1249H
SPECIFICATIONS
Dimensions:
Diameter of column: 11.81"
Maximum distance (col./spl): 49.21"
Minimum distance (col./spl)): 14.17"
Travel of spindle head: 35.04"
Max. dist. base surface/spindle end: 52.95"
Min. dist. base surface/spindle end: 17.32"
Elevating height of arm: 24.41"
Effective area of box table: 25.00" x 20.47" x 16.54"
Dimensions of base: 70.28" x 30.91" x 7.48"
Machine height from floor: 104.13"
Shipping dimensions (LxWxH): 82" x 40" x 89"
Capacity:
Drill capacity:
Steel: 1.97"
Cast Iron: 2.36"
Tapping capacity:
Steel: 1.57"
Cast Iron: 1.97"
Spindle:
Taper hole spindle: MT#5
Spindle stroke: 10.63"
Spindle speeds: 56~1,450 rpm x 12 steps
Spindle feeds (rev. x steps): 0.0024"; 0.0039"; 0.0079" x 3
Power:
Main motor: 5 HP, 3 phase (2-speed motor)
Elevating motor: 1 HP
Clamping motor: 1 HP hydraulic
Coolant pump motor: 1/8 HP
Weight:
Net weight: 5,070 lb.
Gross weight: 5,510 lb.
OPTIONAL
(call for pricing)
440V Conversion
Tilt table 20" x 20" x 23"
Tilt table 32" x 28" x 24"
