Top Seller
63" Arm 12.6" Column Victor
Location:
Harrison, NJ
Price:
$29,400 USD
Manufacturer:
Victor
Model:
1363H
Weight:
7,275 lb.

Specifications

Condition:
new
Stock number:
149556
Steel:
1.97"
Model 2:
1363
Steel 2:
1.57"
Age info:
NEW
Cast iron:
2.36"
Main motor:
5 HP, 3 phase (2-speed motor)
Net weight:
7,275 lb.
Cast iron 2:
1.97"
Gross weight:
8,380 lb.
Clamping motor:
1 HP hydraulic
Spindle speeds:
56~1,450 rpm x 12 steps
Spindle stroke:
10.63"
Elevating motor:
1 HP
Coolant pump motor:
1/8 HP
Diameter of column:
12.6"
Dimensions of base:
93.11" x 38.19" x 7.87"
Taper hole spindle:
MT#5
Travel of spindle head:
49.21"
Elevating height of arm:
26.77"
Machine height from floor:
108.66"
Effective area of box table:
24.80" x 19.69" x 19.69"
Maximum distance (col./spl):
63"
Shipping dimensions (lxwxh):
106" x 45" x 95"
Minimum distance (col./spl)):
13.78"
Spindle feeds (rev. x steps):
0.0024"; 0.0039"; 0.0079" x 3
Max. dist. base surface/spindle end:
55.71"
Min. dist. base surface/spindle end:
18.31"
Subcategory:
New radial drills

Description

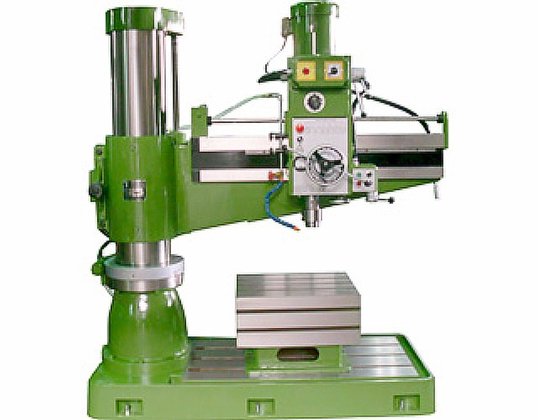

NEW VICTOR 13" x 63" RADIAL DRILL
MODEL: 1363
SPECIFICATIONS
Dimensions:
Diameter of column: 12.6"
Maximum distance (col./spl): 63"
Minimum distance (col./spl)): 13.78"
Travel of spindle head: 49.21"
Max. dist. base surface/spindle end: 55.71"
Min. dist. base surface/spindle end: 18.31"
Elevating height of arm: 26.77"
Effective area of box table: 24.80" x 19.69" x 19.69"
Dimensions of base: 93.11" x 38.19" x 7.87"
Machine height from floor: 108.66"
Shipping dimensions (LxWxH): 106" x 45" x 95"
Capacity:
Drill capacity:
Steel: 1.97"
Cast Iron: 2.36"
Tapping capacity:
Steel: 1.57"
Cast Iron: 1.97"
Spindle:
Taper hole spindle: MT#5
Spindle stroke: 10.63"
Spindle speeds: 56~1,450 rpm x 12 steps
Spindle feeds (rev. x steps): 0.0024"; 0.0039"; 0.0079" x 3
Power:
Main motor: 5 HP, 3 phase (2-speed motor)
Elevating motor: 1 HP
Clamping motor: 1 HP hydraulic
Coolant pump motor: 1/8 HP
Weight:
Net weight: 7,275 lb.
Gross weight: 8,380 lb.
OPTIONAL
(call for pricing)
440V Conversion
Tilt table 20" x 20" x 23"
Tilt table 32" x 28" x 24"
