Top Seller
63" Arm 17" Column Victor
Location:
Harrison, NJ
Price:
$41,790 USD
Manufacturer:
Victor
Model:
1763H
Weight:
11,220 lb.

Specifications

Condition:
new
Stock number:
149557
Steel:
2.25"
Steel 2:
2"
Steel 3:
5"
Age info:
NEW
Cast iron:
2.625"
Main motor:
7.5 HP, 3 phase
Net weight:
11,220 lb.
Cast iron 2:
2.375"
Cast iron 3:
7.375"
Gross weight:
12,540 lb.
Clamping motor:
1 HP
Spindle speeds:
40~1,920 rpm x 12 steps
Spindle stroke:
14-9/16"
Elevating motor:
2 HP
Coolant pump motor:
1/8 HP
Diameter of column:
17"
Dimensions of base:
97-5/8" x 41-11/32" x 8-1/4"
Taper hole spindle:
MT#5
Travel of spindle head:
49.63"
Elevating height of arm:
35.44"
Machine height from floor:
124-7/8"
Effective area of box table:
27-5/8" x 19-5/8" x 15-3/4"
Maximum distance (col./spl):
63"
Shipping dimensions (lxwxh):
112" x 53" x 117"
Minimum distance (col./spl)):
13.38"
Spindle feeds (rev. x steps):
0.0028"~0.0378" x 6
Max. dist. base surface/spindle end:
63"
Min. dist. base surface/spindle end:
13"
Subcategory:
New radial drills

Description

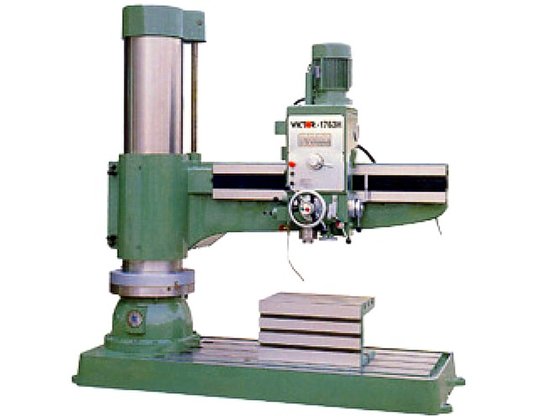

NEW VICTOR 17" x 63" RADIAL DRILL
MODEL: 1763H
SPECIFICATIONS
Dimensions:
Diameter of column: 17"
Maximum distance (col./spl): 63"
Minimum distance (col./spl)): 13.38"
Travel of spindle head: 49.63"
Max. dist. base surface/spindle end: 63"
Min. dist. base surface/spindle end: 13"
Elevating height of arm: 35.44"
Effective area of box table: 27-5/8" x 19-5/8" x 15-3/4"
Dimensions of base: 97-5/8" x 41-11/32" x 8-1/4"
Machine height from floor: 124-7/8"
Shipping dimensions (LxWxH): 112" x 53" x 117"
Capacity:
Drill capacity:
Steel: 2.25"
Cast Iron: 2.625"
Tapping capacity:
Steel: 2"
Cast Iron: 2.375"
Boring capacity:
Steel: 5"
Cast Iron: 7.375"
Spindle:
Taper hole spindle: MT#5
Spindle stroke: 14-9/16"
Spindle speeds: 40~1,920 rpm x 12 steps
Spindle feeds (rev. x steps): 0.0028"~0.0378" x 6
Power:
Main motor: 7.5 HP, 3 phase
Elevating motor: 2 HP
Clamping motor: 1 HP
Coolant pump motor: 1/8 HP
Weight:
Net weight: 11,220 lb.
Gross weight: 12,540 lb.
OPTIONAL
(call for pricing)
Tilt table 20" x 20" x 23"
Tilt table 32" x 28" x 24"
