5HP Spindle Victor KY-27VS DRILL
Location:
Harrison, NJ
Price:
$7,500 USD
Manufacturer:
Victor presses
Model:
KY-27VS

Specifications

Condition:
new
Stock number:
149569
Base:
34-1/4" x 20"
Lxwxh:
43" x 33.5" x 85"
Steel:
2"
Travel:
7.5"
Steel 2:
1.5"
Steel 3:
3.38"
Age info:
NEW
Cast iron:
2-5/16"
Net weight:
1,540 lb.
Cast iron 2:
1.75"
Cast iron 3:
4.75"
Morse taper:
M.T.#4
Coolant pump:
1/8 HP
Gross weight:
1,650 lb.
Working area:
23-5/8" x 17-11/16"
Spindle drive:
5 HP 3 Phase
Diameter of column:
6-3/8"
Distance spindle to base:
48-13/16"
Spindle speeds rpm range:
100-1,000 rpm (infinitely variable speed)
Table rotation on the arm:
360 degrees
Table rotation on the column:
360 degrees
Distance spindle to table (max):
30-11/16"
Distance spindle center to column:
13.75"
Subcategory:
New drill presses

Description

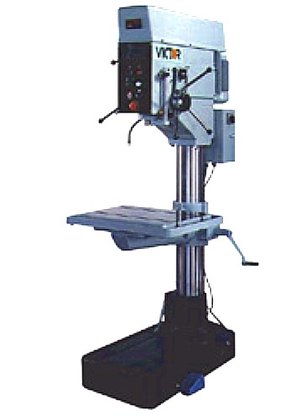

NEW VICTOR VARIABLE SPEED DRILL
MODEL: KY-27VS
SPECIFICATIONS
Dimensions:
Distance spindle center to column: 13.75"
Distance spindle to base: 48-13/16"
Distance spindle to table (max): 30-11/16"
Diameter of column: 6-3/8"
Working area: 23-5/8" x 17-11/16"
Table rotation on the arm: 360 degrees
Table rotation on the column: 360 degrees
Base: 34-1/4" x 20"
Capacity:
Drill capacity:
Steel: 2"
Cast Iron: 2-5/16"
Tapping capacity:
Steel: 1.5"
Cast Iron: 1.75"
Boring capacity:
Steel: 3.38"
Cast Iron: 4.75"
Spindle:
Morse taper: M.T.#4
Travel: 7.5"
Auto down feeds per revolution of spindle: 0.00354", 0.0063", 0.011"; 3 steps
Spindle speeds rpm range: 100-1,000 rpm (infinitely variable speed)
Motor:
Spindle drive: 5 HP 3 Phase
Coolant pump: 1/8 HP
Weight:
Net weight: 1,540 lb.
Gross weight: 1,650 lb.
Packing Dimensions:
LxWxH: 43" x 33.5" x 85"
